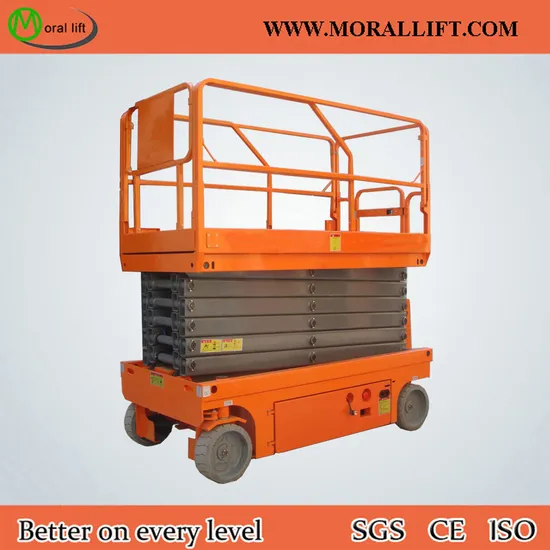

Battery Powered Mobile Self Moving Scissor Lift (SJYZ)

Product Description

Battery Powered Mobile Scissor Lift (SJYZ) Product Description

This self-propelled scissor lift platform is convenient to move by battery power, lifting operation is safety and reliability,
so it is widely used in hotels, banks, big halls, supermarkets, airport waiting rooms and railway station waiting rooms etc.
This type of platform adopts hydraulic lift platform, and has two suits of lifting operation equipment buttons. With high
quality welding forming framework profiled, it is compact structure and has high safety coefficient. It is up to the position
control block when the platform rising the highest. The hydraulic lift platform has been tested and debugged before packed.
Every technical parameter fitted the design requirement.
Can travel at slow speed and rapid speed self propelled.
Only one person is needed to lower, raise, forward, backward, steer the machine.It improves working efficiency and reduces
man-power and labor intensity greatly.
Safe ground clearance for indoor/outdoor Operation.
Robust, reliable and easy to maintain.
Slope alarm, charger indicator.
Pit protection system for max. Safety,Flexible turning unit.
It is especially good for long time work at airport terminals, stations, docks, shopping markets, stadiums and work shops.
Main Features

1. Lifting height:4-12m
2. Load capacity:300kg--500kg
3. Hydraulic system increase safety
4. Battery power
Main description:
1) Can travel at slow speed and rapid speed self propelled.
2) Only one person is needed to lower, raise, forward, backward, steer the machine.
It improves working efficiency and reduces man-power and labor intensity greatly
3) Maneuverable, extremely easy to use
4) Safe ground clearance for indoor/outdoor Operation
5) Robust, reliable and easy to maintain
6) Slope alarm, charger indicator
7) Pit protection system for max. Safety, Flexible turning unit
8) It is especially good for long time work at airport terminals, stations, docks, shopping markets, stadiums and work shops.
Product Parameters

Model	Lifting height(m)	Working height(m)	Rated capacity(kg)	Platform size(mm)	Weight(kg)
SJYZ-4	4	6	320	2260*800	1800
SJYZ-6	6	8	320	2300*1150	2100
SJYZ-8	8	10	320	2300*1150	2300
SJYZ-10	10	12	320	2300*1150	2500
SJYZ-12	12	14	320	2300*1150	2950

Detailed Photos
