CNG Cylinder CNC Threading Machine

Product Description

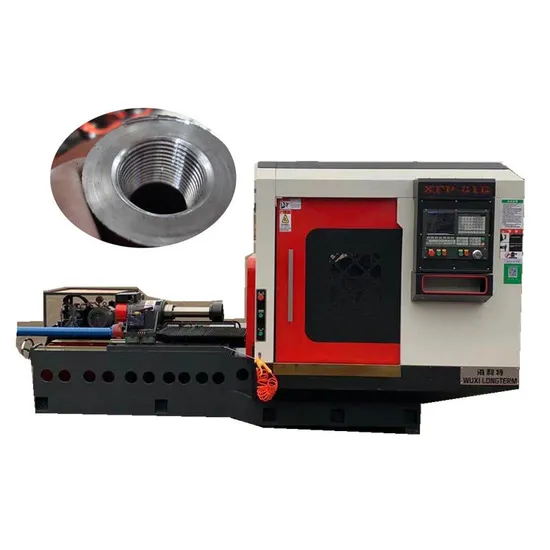

CNG cylinder CNC threading machine
Product Description
Product Parameters

No	Item	Data
1	Diameter range	φ141mm--φ356mm
2	Length range	300mm-2000mm
3	Main motor power	5.5KW converter motor
4	Converter motor	z-axis : 10M/MIN	X Stroke:10M/MIN
5	Tool holder	horizontal structure
6	Range of spindle speeds	100-1000r/min

Application

The machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as well as threading, which are realized by NC programming. Single station device is adopted for input and output materials (semi-automatic); The workpiece clamping adopts the front top bowl positioning.

Step 1.Radial facing, cylindrical turning---finish the end face by the outer circular knife and turning of outer chamfer
Step 2.Inside hole--adopts lathe processing of inner hole of inner hole cutter
Step 3.Threading --adopts thread tool

The heavy load structure of rectangular guideway with flat bed body is adopted and the lathe-turning part is dully closed and protected.

Flat slideway: applies flat bed made of high duty cast iron HT250, by ultra audio quenching, provides a stable foundation for the high rigidity of the whole machine, realizes simplicity of chip removal and reliability of protection. And the guideway part is fully protected.

Rectangular guideway :The X and Z direction of machine tool adopts rectangular guideway, the width of Z direction guide rail is 70, the width of X direction guide rail is 60, the span of two guide rail in Z direction is 500MM, and the span of two guide rail in X direction is 280MM. Rectangular guideway has high precision of dynamic positioning, sound dynamic performance, well rigidity and greatly improves production efficiency and machining accuracy.
