CO2 on-Line Flying &Laser Marking Machine Equipment Printer for Wood/Food/Water Bottles

CO2 on-Line Flying &Laser Marking Machine Equipment Printer for Wood/Food/Water Bottles

US$6,000.00-8,860.00 1 Piece (MOQ)

Basic Info.

Model NO.
VC-30W
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
CO2 Laser
Laser Classification
Gaseous Laser
Type
CO2 Laser Marking Machine
Marking Method
Scanning Marking
Model No
Vc-30W
Minimum Line Width
0.2mm
Power Consumption
500W-600W
Maximum Marking Line Speed
2m-3m/S
Minumum Font Size
0.5mm
Printer Wavelength
10.64um/10.2um/9.3um
Transport Package
Cardboard
Trademark
WEIEJET
Origin
Shanghai, China
HS Code
8456100090
Production Capacity
5000PCS/Year

Product Description

Welcome to be our distinguished agent!
Product Description:

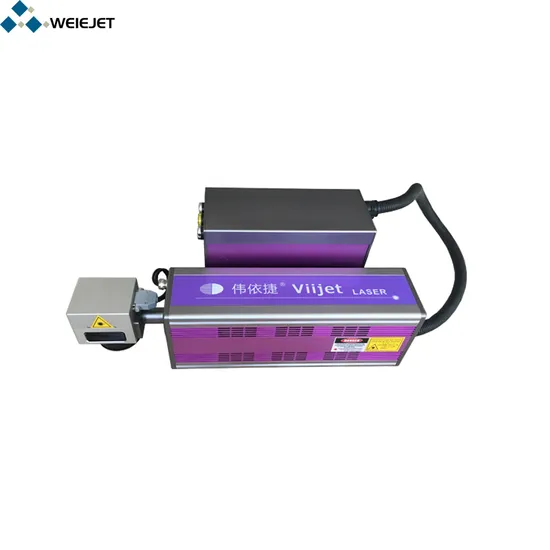

Viijet CO2 Laser printers adopts the most advanced technology and its superior performance and reliablequality, VijetCO2 laser printers obtains the trust of the majority of users. The marked graphics are clear and beautiful,it's no-consumables and the performance is stable, the maintenance-free timeis up to 20,000 hours.With easy operation, wide ranges of applications, it adapts to a variety of materials marking. The wholesystem has the advantages of high marking accuracy, high speed, extremely stable performance andcontinuous working for a long time, which can be directly applied into the on-line processing of largequantities of flow production lines. Viijet CO2 laser machine is suitable for the vast majority of non-metallic materials, such as paper packaging, leather fabrics, plexiglass, plastic resin materials,bamboo products, metal plating, PCB board. It's widely used in marking the production and expiry date,batch number, shifts, manufacturer s name and logo, etc. in the area of medicine, personal care products,tobacco, food and beverage packaging, alcohol, dairy products, garment accessories, leather,electronic components, chemical building materials and so on.
Technical Parameters:

Model No.
Vc-30W Cooling Method Air-cool

Laser Wavelength
20.64um/10.2um/9.3um Minimum Line Width 0.2mm

Output Stability
±5%-10% Operating Environment 10-45ºC

Marking Area
75mm×75mm/110mm×110mm
/175mm×175mm
Humidity Range 45%-75%

Output Power
10%-100% Electrical Requirements 220V/50Hz/60Hz

Output Frequency
5-30KHZ Power Consumption 500W-600W

Maximum Marking
Line Speed
2m-3m/s Packaged Weight 68KG

Minumum Font Size
0.5mm Service Life 20000Hrm

Advantages:
1. Great performance:
Identical marking quality on both metal and non metal materials with high speed (up to 4000mm/s speed )
2. Long lifetime:
Adopt advanced fiber generator, the life time could be up to 100, 000 hours.
3. Low consumption:
It is environment-protecting and energy-saving, power consumption is reduced by 3-10 times compared with YAG laser. Using cost is really reasonable.
4. Maintenance-free:
The machine is maintenance-free, there is almost no any parts need to change after long term using.
5. Easy operation:
The machine is very easy to operate, and even the fresh man can use it well following the instruction paper.
Services:
1.Installation Service
Installation Services are available with all machines. We dispatch technician to customer's factory for installation and preoperation of machines.
2.Training Service
Our technician is available to your factory and offer training of how to use our machines.
As well, you may send your technician to our company to learn how to operate machines.
3.Quality Guarantee
We guarantee the quality of machine (e. G. Processing speed and working performance is the same as the data of samples making).
We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for testing.
After making sure machine is working well, then shipments will be made.
Machine warranty is 2 years. We offer flexible extended warranties if needed.
Please advise us following information to recommend you most suitable machine:
1> What's kind of material do you want to mark? metal parts or non metal material?
2> What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand.
3> What is the mostly used thickness and what is the maximum thickness?
4> What is the max dimension of your materials ?
5> After mark, what will be the metal used for? (application)
6> Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
FAQ

Q: How to operate the machine? is training necessary?
A: The machine is mainly controlled by software. It's very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with fiber laser printing machine before can still operate it very well. According to customers' requests, we can send our technician to customer' plant for machine training or customers can come to our plant for machine training if needed.
Q: In case machine exists the problem, how to do after sales service?
A: We provide two years machine warranty. During the two-year warranty, in case of machine exists the problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall on our warranty list. After the warranty, we still provide lifetime service.
Q: What's package?
A: We have 3 layers package. For the outside, we adopt Wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by the waterproof plastic bag.
Q: What's delivery time?
A: Generally speaking, lead time is 7 work days after receiving the payment.
Q:What's the Payment terms?
A:We accept T/T and L/C as our usual payment terms.
Q:What's the delivery terms?
A:We usually make delivery by air for sample order based on customers' requests, and we mostly make delivery by sea for formal order.
Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers' requests.
Q: What're consumables for fiber laser marking machine?
A: It does not need consumables. It's very economical and cost-effective.
