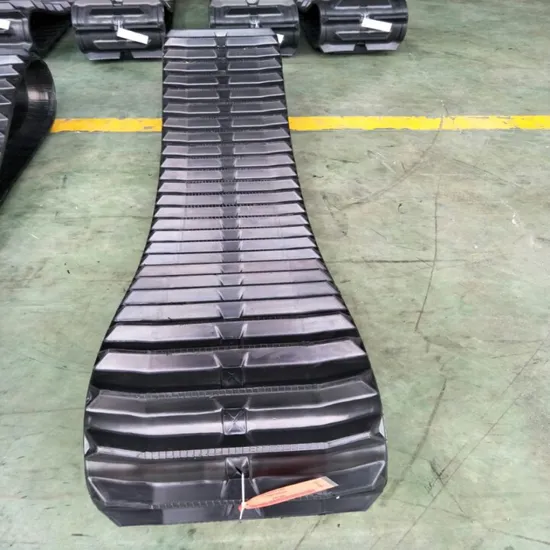

Combine Harvester Rubber Track 450*90*60 for Agricultural Machinery

Product Description

CLAAS MACHINERY PARTS 450*90BS*60 RUBBER TRACKS for AGRICULTURAL MACHINES: 1.More detailed information of agricultural equipments Combine Harvester rubber tracks:
Commodity : rubber track
Model: 450*90*60
Condition: New
Application : tillage, planting, harvesting, sowing and so on.
Size: customized or OEM/ODM
Guarantee: 800-1000 working hours
Suitable: For mini excavator, bulldozer, agriculture, engineering, etc..
Certificate: ISO 9001
2.Rubber Tracks' Specification :
Size: 450mm*90mm*60
Specifications:
1). Continuous rubber track
2). Conventional type or interchangeable type rubber track
3). Warranty: Guarantee one year under normal use
4). Conventional and interchangeable type
5). OEM orders of complete track systems are welcome
6). Comprehensive range of standard rubber crawler track systems are available
7). Undercarriages and bases are available for a wide range of machinery
8). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine
9). Warranty: 12 months
10). Certification: ISO9001: 2000
Rubber Track we can supply such as KUBOTA, MOROOKA, YANMAR, TAKEUCHI, BOBCAT, CAT, KOMATSU, KOBELCO, SUMITOMO, DOOSAN, DAEWOO, FIAT, IHI, HITACHI, HYUNDAI, KATO, JCB, JOHN DEERE, YUCHAI, VOLVO, TEREX...

size width*pitch	link	A	B	C	D	F	pattern	guiding
350*90	42-56	24	76	41	40	25	AP	A2
400*90	42-56	38	82	35	32	30	AP	A2
450*90	58-76	36	83	46	32	30	AA	A2
KU450*90	58-76	40	82	36	27.5	30	AP	A2

Parameters:

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
