Quality Assurance Concrete Mixer with Mechanical Hoppertdcm200-7D/13D
Basic Info.
Model NO.
TDCM200-7D
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Vacuum
Structure
Rotor Type
Productivity
25m²/h
Feeding Height
1370mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Diesel Engine Model
Changfa /Yanmar /Deutz
Motor Type
Diesel /Motor
Colour
Yellow
Keyword
Mechanical Concrete Mixer
Model
Tdcm510 Concrete Mixer
Transport Package
1*20gp Container Loads 4 Units
Specification
CE /ISO
Trademark
topmac
Origin
Zhengjiang, Jiangsu, China
HS Code
8474310000
Production Capacity
1000untis/Month
Packaging & Delivery
Package Size
230.00cm * 160.00cm * 225.00cm
Package Gross Weight
135.000kg
Product Description

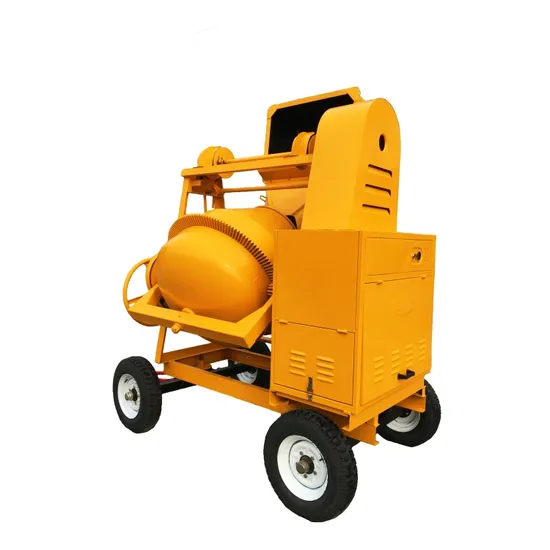

TDCM510-11DTilting Drum Concrete Mixer
During mixing, it is very important to tilt the drum. And the raw material feeding process is suggested as follows:
Put in the water and sand first to clean off the remains of the last mix. Add the cement and turn the drum about 4 turns. The water/sand/cement mixture should be smooth and flowing evenly. Turn the drum until the color of the mix is even.
Put in the stone and turn the drum about 8 turns. Don't go too fast, let the mix fall through the mixing arms. Going fast does not make a better mix. The drum axis usually stays at an angle of about 15 degrees from horizontal during mixing.
Advantages
1.A low cost, mechanically fed, Manual tilting drum mixer
2.High capacity mixer capable of producing up to 32 batches (6 cubic metres) per hour
3.Materials loaded using a mechanical loading hopper to ensure high production rates
4.Choice of all kinds of diesel engine or 3-phase electric motor
5.Positive heavy duty driveline using roller chain bevel wheel and pinion
6.Jacking system allows wheel removal for storage during long term use
7.Outrigger legs maintain stability throughout the loading cycle
Main Specifications
| TDCM510 | |
| Power | 7KW/13KW |
| Power source | Diesel Or Electrol Motor |
| Drum total Volume | 660 liter |
| Capacity (unmixed) | 320 litre |
| Capacity (mixed) | 200 litre |
| Mixing time | 40 sec. |
| Capacity Per Hour | 6~8m3 |
| Dimension | 1930×2300×2950mm |
| Steel Thickness of Drum | 4mm |
| Operation | Maunally Fed |
| Weight | 1250kg/1300kg |
Shipping, Delivery & Maintenance
| 20' container can be loaded with | 4 units |
| 40H' container can be loaded with | 9 units |
| Delivery time | 4 weeks after confirmation of the order |
