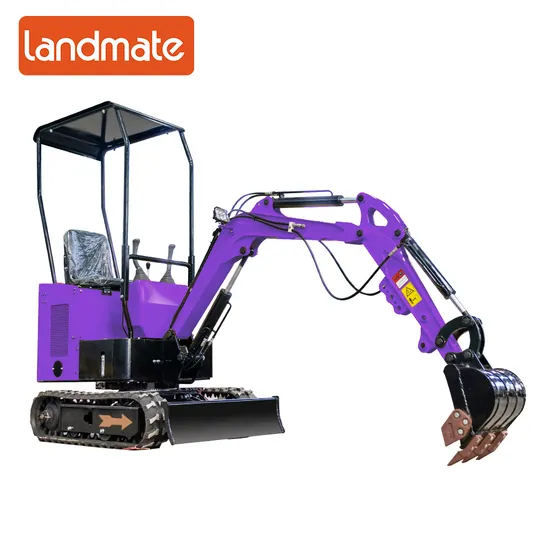

2023 New Digger 1.2 Ton Mini Household Excavator with Pink Purple

Product Description

A compact or mini excavator is a tracked or wheeled vehicle with an approximate operating weight from 0.8 to 2.0 tonnes. It generally includes a standard backfill blade and features independent boom swing.
The mini excavator has capabilities similar to an excavator, with the added benefit of being able to work in small spaces. It goes by many names including the mini excavator, small excavator, mini digger, mini hoe and compact excavator. No matter what you call this machine, the small compact excavator is small enough to get any type of precise digging done.
Landmate designs 6 kinds of mini excavators, including 0.8 ton, 1 ton, 1.2 tons, 1.5 tons, 1.8 tons and 2.0 tons. Used for installing pools & hot tubs, repairing sewer lines, tree harvesting, light demo, material handling, stump removal, construction projects or landscaping.
Optional attachments:
• Hydraulic thumb bucket
• Mud / Cleaning bucket
• Skeleton / Sieve bucket
• Tilting bucket
• Ripper
• Rake
• Rotary drill
• Hammer
• Quick coupler / hitch
• Wood grabber
• Custom logos, shape, size and other features available upon request.
LME12 Crawler Excavator Specifications

Main Demensions (mm)
Overall dimension (LxWxH)	2,775 x 930 x 2,219
Wheelbase	910
Total length of track	1,230
Platform ground clearance	380
Platform back turning radius	784
Chassis width	896
Track width	180
Chassis ground clearance	132
Track height	320
Operating Range (mm)
Max. digging depth	1,750
Max. vertical digging depth	1,375
Max. digging height	2,610
Max. dumping height	1,850
Max. digging radius on ground	2,850
Min. rotation radius	1,330
Max. upgrade height of bulldozer blade	345
Max. digging depth of bulldozer blade	255
Performance Parameter
Weight	1,200kg
Bucket capacity	0.025m3
Bucket width / weight	380mm / 120kg
Engine	Kubota D722
Bore stroke	Three cylinders, water cool
Rated power	10.2kw / 2,500r/min
Main pump	G5-6
Displacement	6.8ml/r
Swing motor	China brand
Traveling motor	China brand / USA EATON motor (optional)
Travel speed	1.5km/h
Battery	12V 60A
Air fliter	Double fliters inside made in Germany
Diesel tank	Independent 18L
Main valve	BEIFANG

FAQ
1. Are you factory or trading company?
We are the excavator buckets of manufacturer with over 12 years experience.
2. What is your best price?
We are sure that at the same price, we can provide the best quality. And at the same quality, we can provide our best offer.
3. Is one sample acceptable?
Of course yes, one digging bucket sample is welcome.
4. What is your delivery time?
Ship 1* 40HQ container within 10 days after confirming the drawing.
5. What's your company advantages?
High cost performance & quick response + fast delivery + excellent one-stop from designing to promotion.
6. What's your mainly exporting market?
We export to American, Australia, Chile, Peru, South Africa, Russia and so on.
7. Can you manufacture excavator buckets with our brand?
Surely, that is welcome to customize service.
8. How to choose the right bucket?
Please advise us the brand & type of your excavator.
It would be better that if you can offer the pin size, arm width, pin center to pin center.
