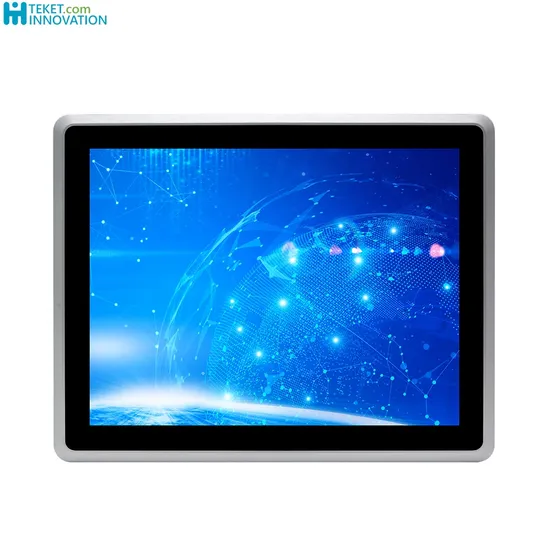

C150y-C26 15 Fanless Embedded Industrial Capacitive Touch Screen Panel PC with Intel I5-4310u DDR3l 8GB
| US$100.00-300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C150Y-C26
CPU Type
Intel I5-4310u
Hard Disk Rack Type
Partition
Operating Temperature
-20℃ to 60℃
RAM
8GB
Screen Size
11-15′′
Storage Capacity
512GB SSD
System Expansion Slot
PCIe x1
Touch Screen
Touch Screen
Type
IPC
Resolution
1024 X 768
System Support
Windows 7,Ubuntu
Transport Package
Carton Box
Specification
L368*W292*H62mm, 3.8kg
Trademark
TEKET/OEM
Origin
China
HS Code
8471301000
Production Capacity
1000pieces Per Year
Product Description
Product Description C150Y-C26
15" Industrial Panel PC
Features
15-inch LCD, 1024*768, capacitive touch screen
Integrated Intel®i5-4310U/2.00GHz dual-core quad-thread processor
1*SODIMM DDR3L 1600MHz memory, up to 8GB
1*HD OUTPUT
2*Intel I210AT Gigabit network adapter
6*RS232 serial port, COM1~2 RS232 DB9 serial port, COM2 supports RS485/422, COM3-6 RS232/485/422 on the 2*15P Phoenix terminal
2*15Pin Phoenix terminal, four in four out GPIO, switch,5V,GND
2*USB3.0, 2*USB2.0
9~36V wide voltage input
Order Information
15" Industrial Panel PC 15" 1024x768 capacitive touch screen 1*HDI 2*LAN(Intel I210AT) 6*COM 4+4*GPIO 2+2*USB DC9-36V Silver L368*W292*H62mm 3.8kg
C150Y-C26-J1900 V1.0
C150Y-C26-5020U V1.0
C150Y-C26-4310U V1.0
C150Y-C26-4600U V1.0
C150Y-C26-7500U V1.0
Specification
| Model number | C150Y-C26 V1.0(4310U) | |
| chassis | Material/Structure | Aluminum alloy material, fanless cooling structure |
| colour | silver | |
| Dimensions (length, width and height) | L368*W292*H62mm | |
| Weight (bare weight) | 3.80 KG | |
| Install | Support VESA/ embedded panel installation | |
| LCD screen | type | 15 inch LCD |
| Resolution | 1024 x 768 | |
| luminance | 350 cd/m2 | |
| Touch screen | type | Capacitive screen, 10 touch |
| Light transmittance | More than 85% | |
| Main board | CPU | Integrated Intel®i5-4310U/2.00GHz dual-core quad-thread processor, TDP 15W |
| reveal | Integrated Intel® HD Graphics 4400 | |
| Internal memory | 1 x DDR3L SODIMM slot, supporting 1600 MHZ memory and a maximum of 8GB memory | |
| IO interface | POWER | 1* Power button, 1* one key restore (and reset key to choose one), 1*ACLOSS (power on DIP switch) |
| LED | 1* Power indicator, 1* hard disk indicator | |
| Display interface | 1 * HD OUTPUT1.4 | |
| LAN | 2*Intel I210AT Gigabit network adapter, supporting network wake up and PXE functions | |
| USB | 2 x USB3.0, 2 x USB2.0 | |
| COM | 6*RS232 serial port, COM1~2 RS232 DB9 serial port, of which COM2 supports RS485/422, COM3~6 RS232/485/422 On the 2*15P Phoenix terminal, COM1-2 supports 9pin live function | |
| Phoenix terminal | 2*15Pin(4 in 4 out GPIO, switching signal, COM3~COM6 (RS232/RS485/422), 5V VCC and GND) | |
| Dip switch | 10-bit dip switch, COM2~6 RS232/485/422 switch | |
| Audio frequency | 1*Line out, 1*MIC | |
| Power source | 1*DC aviation interface or 1*2Pin Phoenix terminal, support 9V~36V wide voltage input | |
| store | SATA | 1 x 2.5-inch hard disk |
| MSATA | 1*MSATA | |
| extend | M.2 | 1*M.2/WiFi, supports Key-E, 2230, WiFi module |
| 1*M.2/5G, supports Key-B, 2242/52, 5G modules | ||
| System support | Windows | Windows 7 |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (256 level, 0~255 seconds) | |
| Power demand | Power supply type | External power adapter |
| Voltage input | 9V~36V wide voltage | |
| Power output | 36W~90W (depending on the equipment) | |
| environment | Operating temperature | -10ºC to 50ºC |
| Storage temperature | -20ºC to 70ºC | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
