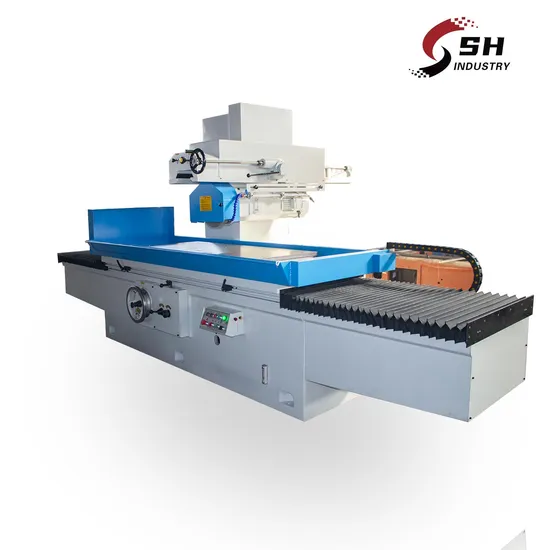

M7180 Horizontal Wheel Moving Hydraulic Surface Grinder Machine Price

Product Description

Product Description
M7180 Horizontal Wheel Moving Hydraulic Surface Grinder Machine Price
Product Parameters
The main performance characteristics:1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.5. No vibration, low noise motor spindle.6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.Application:Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Main technical specifications	Specifications		Units	M7180x1250	M7180x1600		M7180x2000
	Size of work table(L x W )		mm	1250x800	1600x800		2000x800
	Max. Longitudinal movement of worktable		mm	1350	1700		2100
	Max. Distance from the spindle centerline to the worktable surface		mm	850	850		850
	Max. Cross movement of grinding herd		mm	850	850		850
	Max. Vertical movement of grinding head		mm	800	800		800
	Vertical movement of the grinding head by hand wheel	per graduation	mm	0.01	0.01		0.01
		per graduation	mm	1	1		1
	Rapid lifting motor	Power	kw	0.37	0.37		0.37
		Speed	R/min	1450	1450		1450
	Abrasive wheel dim (L x D x W)		mm	450x127x50		450x127x50	450x127x50
	Speed of grinding wheel		r/min	1440		1440	1440
	Total power of motor		KW	20		20	20
	Power of spindle motor		KW	11		11	11
	Power of oil pump motor		KW	7.5		7.5	7.5
	Processing accuracy		mm	0.015/1000		0.015/1000	0.015/1000
	Surface roughness		um	Ra:0.63		Ra:0.63	Ra:0.63
	Package(L x W x H)		mm	3800x2900x3100		4500x2900x3100	5500x2900x3100
	Net weight		Kg	9000		10000	11000

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
