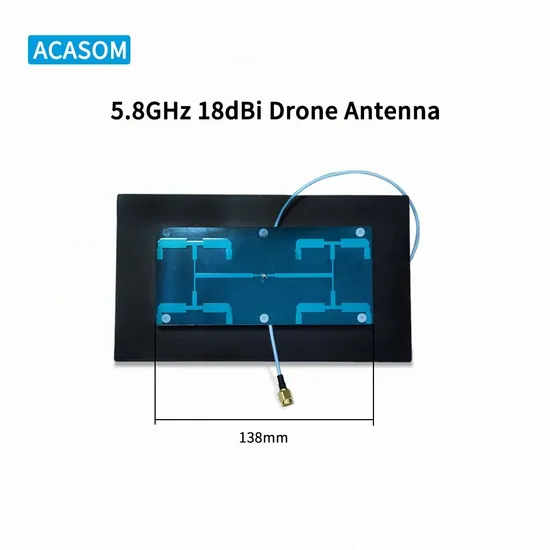

5.8GHz 18dB Drone High Gain Amplifier Booster Antenna Drone Blocker Direction Antenna

Product Description

Product Description
5.8GHz Direction Antenna For Drone FPV, High Gain 18dB, Small Size Frequency:5150MHz-5850MHz
Gain : 18dB
AZ HPBW:32°
EL HPBW: 18°
ACASOM accept customizing the Frequency you need!

Product Parameters
5800MHz High Gain Direction Atenna

900MHz Antenna
Frequency:	5150-5850MHz
Gain:	18 dBi
VSWR:	<1.5:1
Polarization:	Horizontal or Vertical
Horizontal Beamwidth:	32°
Vertical Beamwidth:	18°
Nominal Impedance:	50 Ohms
F/B Ratio:	>25dB
Isolation:
Max Input Power:	30 W
Lightning Protection:	DC Ground

Detailed Photos
Service and process of order
Certificates and patents
Why choose us

ACASOM has been in the industry for 15 years and we have patents for more than 20 pieces. All the products are our self developed and we are willing to customize products for you. We always insist that technology and service are our core competence, we are ready and at your service.

Exhibition and invitation

FAQ
1 I do not know whether your product satisfy my need, how can i know more?
Answer: Please start an inquiry, we have sufficient experienced engineer and existing products for you. 2 Could i customize my products, like frequency? Answer: Yes and we will provide more information, if that is reasonable, we could provide solutions for you.
3 I want to know more details with the products like video and application, how could i manage that?
Answer: Just choose or contact any of our sale manager, we will be at your service.
4 If i can change some parts, such as switch power module to red and black wire line?
Answer: Off course. We can provide reasonable changes for you at any time.
