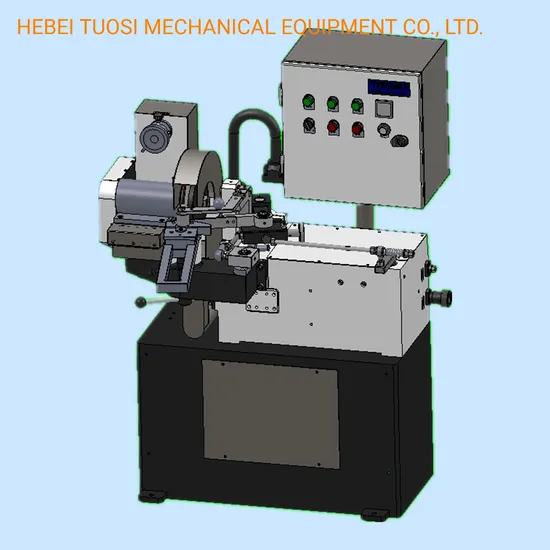

2020 Hot Sale Saw Blade Tooth Seat Grinding Machine

Product Description

1. High grinding precision, thereby improving the precision of the tooth seat.
Because the machine adopts a simple mechanical feeding mechanism, it ensures the consistency of the tooth position and the grinding depth each time, and can correct the radial jump generated during the base body forming (punching) to within 0.05mm (the root of the tooth seat), so that It is concentric with the center hole, which greatly improves the static balance of the saw blade, reduces the vibration generated during use, and improves the stability of the saw blade.
2. Save the grinding wheel.
As the gear feeding and grinding wheel feed accuracy are improved, the uniformity of the grinding wheel consumption during each grinding is ensured, and the crushing and shedding of the emery due to uneven force is reduced, thereby extending the service life of the grinding wheel.
3. Save human resources and reduce labor costs.
For the automatic tooth seat machine, one person can operate at least six machines, the grinding speed of each machine is 10-60 teeth/min, and the grinding quantity of each machine in eight hours is: 480 points * 40 teeth / minute * 0.87 (machine operation rate) = 16704 teeth, The minimum number of teeth that can be ground per person per shift is: 16704 teeth * 6 sets = 100,000 teeth
4. The size of the tooth seat grinded by the automatic tooth seat grinding machine is consistent, which can make the tip have a consistent size after welding, which can reduce the grinding amount of the back angle grinding, and can reduce the consumption of the tip by at least 2%. Save more than 5% of diamond wheel consumption.
1.What is the payment terms?
---L/C, T/T
2.What is the function of the CZ-05E?
---It can grind the tooth seat of the saw blade.
3.Where is the loading port?
---Tianjin, China.
4.Is the company's technology for producing saw blade grinding machines mature?
---Sure,our company have more than 120 technicians, and they have more than 20 years working experiences.
5.Where is the address of the factory?
---Our factory is located in Tangshan city, Hebei province, China.
6. Are you a manufacturer or a trading company?
---We are professional saw blade grinding machine manufacturer. We have more than 120 technicians dedicated to the design, development and production of saw blade grinding machines. And there is an independent sales department and after-sales department to provide you with services.
7. How can I select a suitable grinding machine?
---You can tell us your requirements of saw blade grinding machine, and other parameters of your saw blades, we will give you professional suggestion.
8. Can I contact you if I have any questions?
---Sure, we will serve you wholeheartedly, please feel free to contact us if you have any questions.
