Fabrication of Spherical Turning Tool Ball Valve Turning Lathe Machine

Product Description

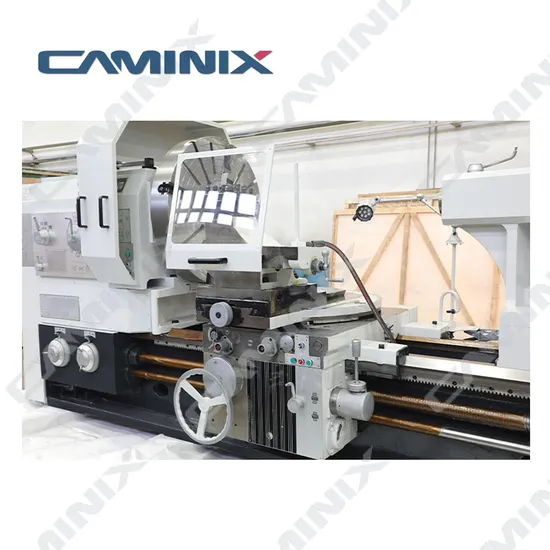

Introduction of CAMINIX CNC Conventional Type Ball Turning Lathe
Caminix spherical lathe is mainly used for turning the outer spherical surface of the ball core body of the ball valve. Processing spherical diameter 1000mm--1600mm. It can realize finishing turning, semi-finishing turning, grinding and other processing work. The bed adopts rectangular guide rail, which has good stability and rigidity. The spindle adopts a three-support structure, with high rigidity and high precision, and can be powerfully cut. The company produces spherical lathes as well as series of products such as MC300 MC600. Users can freely choose or special order according to the size of the workpiece to be processed and the use of the machine tool.
Specification:

Item	Unit	MC300	MC600	MC1050	MC1200
Min. Dia. Of Spherical	Mm	50	260	1000	1200
Max. Dia. Of Spherical	Mm	550	900	1600	1800
Diameter of Spindle Hole	Mm	100	130	100	100
Taper of Spindle Hole	Mm	120	140	140	140
No. of Spindle Speeds		18	21(12)	21(12)	21
Spindle Speeds range RPM	Rpm	6-800	3.15~315
Spindle Reverse Speeds	Rpm	11-838	3.5~291
Swivel angle of Tool post	°	±90	±90	±55	±55
Main Power	KW	11	22	30	30
Approx Net Weight	Ton	4.4	12	25.4	27.4
Approx Machine Length	mm	3725	4700	6120	6220
Approx Machine Width	mm	1280	2500	2620	2720
Approx Machine Height	mm	1690	2000	2520	2620

FEATURES OF STEEL BALL TURNING LATHE:
(1). The lathe bed adopts rectangular guide rails which with the best stability.
(2). The lathe spindle is of high precision which with 3 support structure. It can support heavy cutting.
(3). Operation is easy for workers.
(4). The rotary center line of the tool holder intersected with the rotating center line of the workpiece in order to ensure the roundness.
(5). You just need provide your workpiece and we will especially design precision lathe for you.
WE ALSO HAVE CNC TYPE FOR YOUR REFERENCE
Introduction of CAMINIX CNC Ball Turning Machine
CAMINIX CNC Ball Valve Turning Machine is designed ,developed and manufactured for precise turning of the sphere ( Balls) of the ball valves,With range of DN15-DN1600 1/2''-60'' various kinds of balls with materials of carbon steel,stainless steel,alloy steel,Monel,Tungsten Carbide coating, etc. All of the machines are equipped with latest generation of FANUC brand control system, this is the necessary equipments before Caminix CNC Ball valve grinding machine.
CNC BALL VALVE TURNING MACHINE QC380 DATA SHEET

Item	Unit	Model: QC380
Max Ball Turning Diameter	mm	Φ380-φ490
Max Ball Bore Diameter(≈)	Inch	8″­­-12″
Distance between top central line to the table	mm	300
Max Ball Weight	Kg	300
The power of Main Spindle Motor	kw	15
Main Spindle Rotating Speed Range	Rpm	100-360
Feeding Motor Power	kw	1.2/2.5
Rapid Feed Speed	Rpm	10
The Journey of the X/Z direction	mm	300/150
Sleeve Travel	mm	200
Tailstock Apex		Mohs 6#
X/Z axis Positioning Accruacy	mm	0.02
X/Z axis Repearability	mm	0.01
Ball Roughness	Ra	1.6
Ball Roundess	mm	0.04
Approx. Dimension(LxWxH)	mm	3200*2000*1800
Approx Net Weight	Kg	4500

Caminix reserve the rights to change the specification according to actual production.
WORK PIECE SAMPLE
Appliable Ball Types:
As per Ball Materials: Casting Valve Balls, Forged Valve Balls,
As per Ball Structure : Hollow Valve Balls, Solid Valve Balls,As per Ball Design: Floating Valve Balls, Trunnion Valve Balls, Stem Valve Balls,V Port Valve Balls (Segement Balls),
T Port Valve Balls, L Port Valve Balls, F Port Valve Balls, X-Port Valve Balls, L-STEM, X-STEM, T-STEM, Double Slot T Port, Special Slot, F Port Three Ways, Three Way Valve Balls, Hexangular Valve Balls, Hemi Valve Balls, Plate Balls, Metal Seat Valve Balls and Seats,AS per coating materials : TCC Valve Ball, HVOF Valve Ball, Chrome Valve Ball, Stetllite Valve Ball

Grinding Ball Size: 1/2''-60'' Class 150~Class 2500 PN10-PN420
Base Material: Carbon Steel, Stainless Steel, Alloy Steel
ASTM A105, ASTM A350 LF2, ASTM A182 F304, ASTM A182 F316,ASTM A182 F304L, ASTM A182 F316L,ASTM A182 F6A,
ASTM A182 F51, ASTM A182 F53,ASTM A564 630(17-4PH) Inconel 625,Inconel 690,Inconel 617,Inconel 718,Model 1400 etc
Coating Materials:
Coating: Nitridation,Nickel Plate,Chrome Plating,HVOF Tungsten Carbide,Spray Stellite,Spray Nickel Alloy,Spray Cobalt Alloy NI60,NI55 Inconel etc
