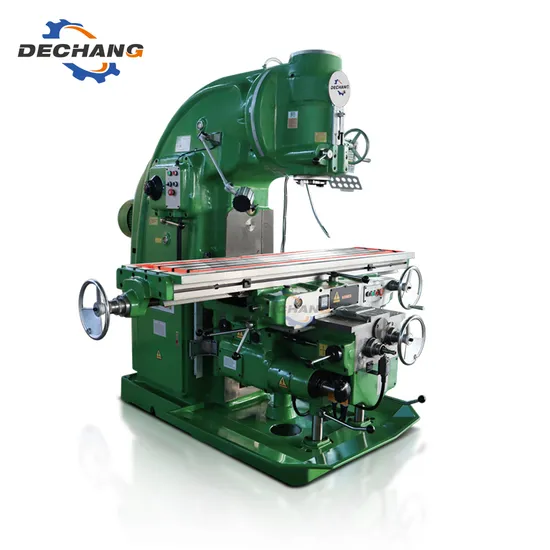

Universal Heavy Duty Vertical Milling Machine X5045 Metal Manual Milling Machine for Sale

Product Description

Universal Heavy Duty Vertical Milling Machine X5045 Metal manual milling machine for sale
Product Parameters
The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
4. Milling head can be rotated 45 degrees,
Application:
1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical parameters:

Specifications	Units	X5032	X5040	X5045
Table size	mm	1320x325	1700x400	1800x450
T-type slot numbers / width /space	mm	3-18-70	3-18-90	3-18-90
Max. load of table	kg	500	800	800
Longitudinal travel (manual/auto)	mm	700/680	900/880	1000
Transverse travel(manual/auto)	mm	255/240	315/300	315
Vertical travel (manual/auto)	mm	350/330	385/365	385
Cutting feed speed	mm/min	X.:23.5-1180 Y:23.5-1180 Z:8-394	X.:23.5-1180 Y:15-786 Z:8-394	X.:23.5-1180 Y:15-786 Z:8-394
Rapid feed speed	mm/min	X/Y:2300 Z:770	X:2300 Y:1540 Z:770	X:2300 Y:1540 Z:770
Spindle travel	mm	70	85	85
Distance between spindle nose and table surface	mm	60-410	30-500	30-500
Max. swivel angle of vertical milling head		±45°	±45°	±45°
Spindle speed step	(steps)	18	18	18
Spindle speed range	rpm	30-1500	30-1500	30-1500
Spindle motor power	KW	7.5	11	11
Overall dimensions	mm	2294x1770x1960	2560x2130x2298	2560x2160x2400
Machine weight	Kg	2800	4250	5100

Detailed Photos
