1L Plastic Extrusion Blow Molding Machine (single stage)

Product Description

Company Profile

Product Description

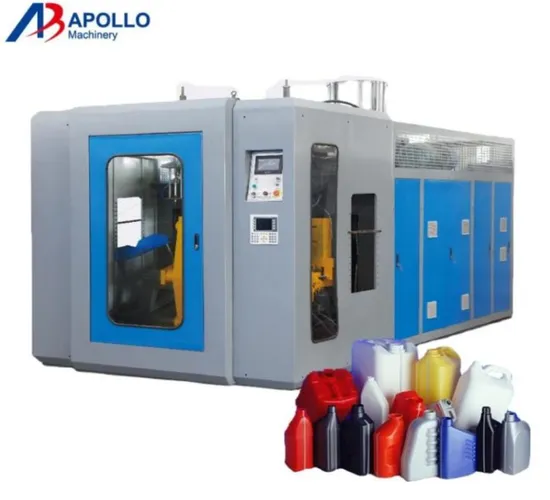

ABLB75I full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers . This design is low power consumption and very stable.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 7.5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
Product Parameters
Technical Parameters: ( ABLB75I )

Max. Product volume	7.5 liters(single die head)
Screw diameter	75mm
Screw L/D ratio	24 L/D
Screw drive power	22 KW
Screw heating capacity	7 KW
No.of heating zone	4 zones
Output of HDPE	100KG/H
Oil pump drive power	11 KW
Clamping force	78KN
Max.size of mold	148-568mm
Mold stroke	400 X 450mm
Max.die diameter	160mm
Blowing pressure	0.6 mpa
Air Volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	80 L/MIN
Size of Machine	3.8x2.2x2.8m
Weight of machine	8 ton

Detailed Photos
Certifications

customer photos
FAQ
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
