Disc Cutting Sawing Machine Hydraulic Power CNC Cutting Circular Saw Machine

Product Description

Products Features
1. Automation Control
The machine adopts the company's fully self-developed PLC-based electrical control system. The HMI is easy to operate. The design of the fieldbus absolute value servo module enables the line to be simpler, with a lower failure rate and more convenient maintenance.
2. One-Piece Machine Foundation
The foundation is comprehensively made of high-strength special casting material with high rigidity, shock resistance, small deformation, and outstanding shock absorption.
3. New Gearbox Structure
The gearbox structure and configuration adopt the gear clearance elimination structure to achieve zero-clearance transmission. It guarantees the smoothness of the gear transmission and effectively improves the cutting efficiency and saw blade lifetime.
4. Automatic Materials Feed and Blade Feed Devices
The advanced feed with absolute value servo motor, ball screws, and ball linear guideways (P & X series) and the design of a unique material feed clamping structure effectively enhance the accuracy and reliability of feeding. The blade feed axis adopts roller type linear guideways, ensuring feeding stability and the axis's durability.
5. Third Vise (Short Remnant Clamping Structure)- Optional Equipment
In the unique short remnant clamping structure, its main jaws adopt two separate hydraulic cylinders for clamping and servo motor-driven dragging actions. This structure can achieve short remnant cutting, improve the yield, and save production costs.
6. Lubrication Cooling System
Adopting the advanced MQL saw blade spray-mist lubrication technology helps reduce saw blade temperature, improve production efficiency, prevent environmental pollution, and extend saw blade life.

Standard		Optional
1	One set of two-axis electrical system	1	Oil mist collector
2	Hydraulic system	2	Extended feed loader
3	Automatic spray-mist lubrication system	3	Power-driven wire brush
4	Automatic material feed loader	4	Cooling water pump
5	Spiral type chip conveyor	5	Automatic chain type chip conveyor
6	Wire brush	6	Third Vise
7	One air spray gun	7	Extended carrying device for cut-off workpiece
8	Circular saw blade
9	One set of tool kits

Product Parameters

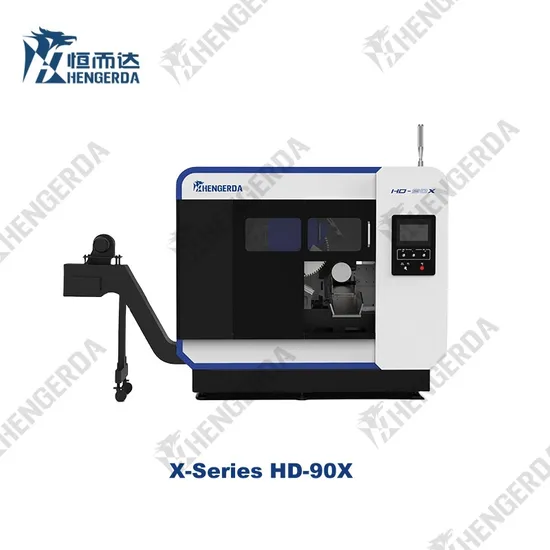

X SERIES HD-90X CIRCULAR SAW MACHINE TECHNICAL DATA
Specifications		HD-90X 2-Axis
CUTTING CAPACITY	Round bar (mm)	15-90
	Square bar (mm)	15-60
	Trimming length (mm)	10-100
	Single feed length (mm)	5-800
	Remnant length (mm)	70
	Perpendicularity tolerance (mm)	±0.05/100
SAW BLADE	Dimensions (mm)	Φ315 x Φ32 x T2.3 / t2.0
	Pin hole (mm)	Φ63/4/Φ11
	Number of teeth (Z)	54, 60, 72, 80, 100, 120
PARAMETERS	Working voltage (V)	380
	Total power (KW)	21.5
	Machine weight estimated (loader included) (KG)	4500
	Machine dimensions estimated (mm)	L 2300 x W 1850 x H 1900
	Machine dimensions estimated (loader included) (mm)	L 7100 x W 1850 x H 1900
LOADER	Number of pieces (P)	Φ90 x 6 m x 11
	Length (m)	3-6m
* Please note: all product technical information, parameters, specifications, dimensions, and designs shown in this catalog are subject to change without prior notice. For more information, please contact Hengerda.
