Factory Price High Efficiency Mono Solar Panel 580W 550W 450W 700W Wholesaler

Product Description

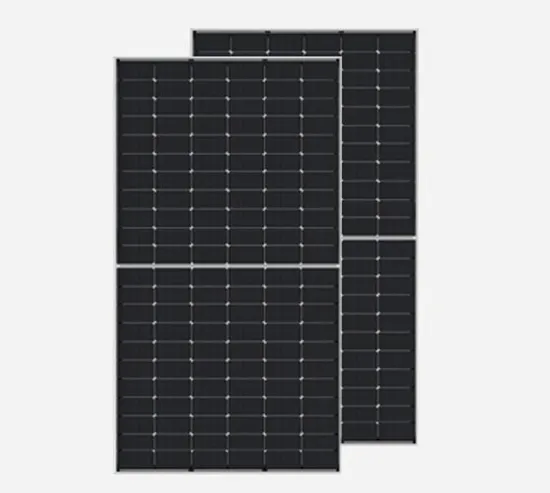

Product Description Experience the pinnacle of solar innovation with the JA Solar JAM72D42 630/LB N-type 16bb Double Glass Bifacial Mono Solar Panel 630W. This revolutionary panel, embodying state-of-the-art high-efficiency technology and robust construction, assures unmatched performance and long-lasting durability, paving the way for a brighter, sustainable future.
Product Details MECHANICAL PARAMETERS

Cell	Mono
Weight	34.6kg
Dimensions	2465±2mmx1134±2mmx30±1mm
Cable Cross Section Size	4mm²(IEC),12 AWG()
No. of cells	144(6x24)
Junction Box	IP68,3diodes
Connector	QC 4.10-351/MC4-EVO2A
Cable Length (Including Connector)	Portrait: 300mm(+)/400mm(-) Landscape: 1300mm(+)/1300mm(-)
Front Glass/Back Glass	2.0mm/2.0mm
Packaging Configuration	36pcs/Pallet,576pcs/40HQ Container
Remark: customized frame color and cable length available upon request

Product Specifications ELECTRICAL PARAMETERS AT STC

TYPE	JAM72D42-615/LB	JAM72D42-620/LB	JAM72D42-625/LB	JAM72D42-630/LB	JAM72D42-635/LB	JAM72D42-640/LB
Rated Maximum Power(Pmax) [W]	615	620	625	630	635	640
Open Circuit Voltage(Voc) [V]	51.87	52.07	52.27	52.47	52.67	52.87
Maximum Power Voltage(Vmp) [V]	43.31	43.51	43.71	43.90	44.10	44.29
Short Circuit Current(lsc) [A]	15.06	15.11	15.16	15.21	15.26	15.31
Maximum Power Current(lmp) [A]	14.20	14.25	14.30	14.35	14.40	14.45
Module Efficiency(%)	20.0%	22.2%	22.4%	22.5%	22.7%	22.9%
Power tolerance	0~+3W
Temperature coefficients of Isc	+0.046%/ºC
Temperature Coefficient of Voc	-0.260%/ºC
Temperature Coefficient of Pmax	-0.290%/ºC
STC	lrradiance 1000W/m², cell temperature 25°C, AM1. 5G
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types.

ELECTRICAL PARAMETERS AT NOCT

TYPE	JAM72S30 570/MR	JAM72S30 575/MR	JAM72S30 580/MR	JAM72S30 585/MR	JAM72S30 590/MR	JAM72S30 595/MR
ated Max Power(Pmax) [W]	664	670	675	680	686	691
Maximum Power Voltage-VMP (V)	43.31	43.51	43.71	43.90	44.10	44.29
Maximum Power Current-IMP (A)	15.34	15.39	15.44	15.50	15.55	15.61
Open Circuit Voltage-VOC (V)	51.87	52.07	52.27	52.47	55.67	55.87
Short Circuit Current-ISC (A)	16.26	16.32	16.37	16.43	16.48	16.53
Irradiation Ratio (rear/front)	10%
*For Nextracker installations, maximum static load please take compatibility approve letter between JASolar and Nextracker for reference. ** Bifaciality=Pmax,rear/Rated Pmax, front

OPERATING CONDITIONS

Maximum System Voltage	1500V
Operating Temperature	-40ºC~+85ºC
Maximum Series Fuse Rating	30A
Maximum Static Load, Front*	5400Pa(112 lb/ft2)
Maximum Static Load, Back*	2400Pa(50 lb/ft²)
NOCT	45±2ºC
Bifaciality**	80%±10%
Safety Class	Class II
Fire Performance	Type1/Class C
