Manufacturers Hot Sale Double Layer Underground Double Walled Oil Fuel Storage Tank

Product Description

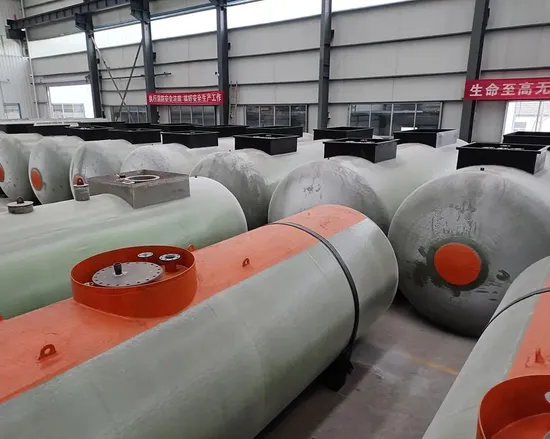

Double Wall Underground Fuel Storage Tank Product Description
1. For underground storage of flammable and non-flammable liquids.
2. Horizontal cylindrical type, consist of inner carbon steel tank and outer FRP shell.
3. Provided with socket for the leak detection system.
4. Pressure tests to check the inner tank and the space between the inner and the outer tanks as well.
Product Parameters
Double Walled Tank Parameters

Tank capacity	Manhole diameter	Oil discharge	Dimension Length*Diameter(mm)
5 CBM	580mm	DN65	2700*1600
10 CBM	580mm	DN65	3400*2000
20 CBM	580mm	DN65	5600*2200
30 CBM	580mm	DN65	6000*2600
40 CBM	580mm	DN65	6800*2800
50 CBM	580mm	DN65	8400*2800

Why Choose Us
Double Walled Tank Application
Double-walled tanks are generally used for:
---Service stations.
---Private fuel stations.
---Storage of flammable liquids for heating systems.
---Feeding generators.
---Storage of aircraft and ship fuels.
---Storage of chemicals and water-polluting liquids.
---Collection and storage of lubricants and drain oils.
---Collection and storage of waste and effluent water.
Customer Photos
Double Walled Tank Feature
1. Safety: double walled fuel tank, anti-static, fire control measures, choosing sanitation measures according to engineering .
2. Environmental protection: The external FRP layer can prevent the contamination of the soil and water source from the leakage. By using of leakage detector, it can keep the monitoring all the time.
3. Economic practically: The service life of the S/F double walled tank is more than 30 years, which can reduce the comprehensive cost.










Certifications
Company Profile
Taian Shengding Metal Container Manufacturing Co., Ltd, the professional oil tanks and mobile fuel stations manufacturer in China. Our products are widely used in storage system, refueling system, mining industry, energy industry and so on. We can offer you the high quality products with the competitive price. Our products have got ISO9001 certificate. Our main products are as follows: explosion-proof mobile fuel stations, oil storage tanks, underground storage tanks, vertical oil tanks, acid and alkali tanks, water treatment equipment, tank heads, boiler auxiliaries and other special tanks.

You May Also Like
Packaging & Shipping
Shipment ways are based on reducing cost and keeping tank's performance.
A. By container ship if tank dimensions are suitable for loading into ISO container.
B. By bulk vessel if tank length or width exceed inside dimensions of container.
FAQ

1. Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
2. What are your products?
Portable fuel station, Containerized fuel station, Oil storage tanks, Underground storage tanks, Oil containers.
3. What is the delivery time of your products?
The delivery time of oil storage tank is usually within 30 days, and fuel station is within 50 days. Please contact for details.
4. What is the MOQ?
Depands on different products, and can be negotiated.The larger the quantity is, the competitive the unit price will be.
5. How about the warranty rules?
Our warranty is one year after shipment. Within one year, we will send broken spare parts at our expense upon request if it is proved to be our production defect. In fact, we rarely receive any spare parts request. If the tanks are maintained properly, they can be used for 15-20 years.
6. What documents do you offer?
A: We offer product quality certification issued by the manufacture, tank drawing, GA drawing, operation instructions and calculation sheet etc for each tank.
