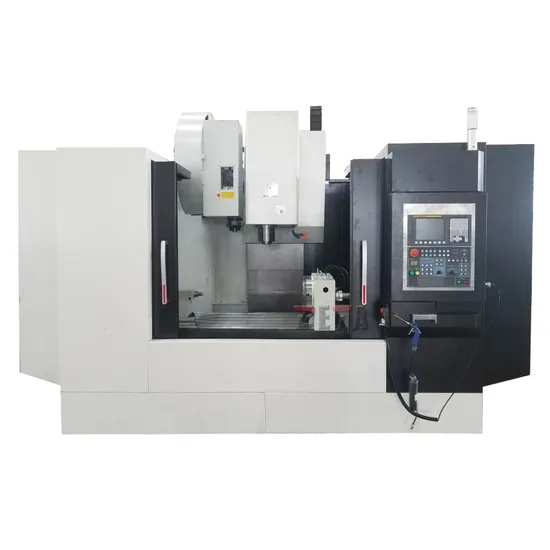

Vmc1300 Box Guideway Vertical 4 Axis CNC Steel Milling Machine
Basic Info.
Model NO.
VMC1300
Type
CNC Milling Machine
Object
Metal
Structure
Bed type
Milling Cutter Type
All Kinds
Milling Cutter Structure
All Kinds
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Guideway
Z Axis Box Guideway
Worktable Size
1500X700mm
X/Y/Z Axis Travel
1300/700/700mm
Spindle
Bt40
Delivery Time
2 Months
Color
Customized
Voltage
Customized
Spindle Motor
11kw
Atc
24 Pieces Arm Type Tool Magazine
Spindle Speed
8000rpm
Guideway Type
X/Y Axis Linear Guideway
Spindle Drive
Belt Drive CNC Milling Machine
Transport Package
Wooden Case
Specification
VMC1300
Trademark
BETA
Origin
Shandong, China
Production Capacity
50 Sets Per Month
Product Description
Chinese VMC1300 Box Guideway Vertical 4 Axis CNC Steel Milling MachineModel VMC1300
| Items | unit | VMC1300 |
| worktable : | ||
| Table size | mm | 1500x700 |
| T slot | no | 5 |
| Centre distance | mm | 135 |
| T-Width | mm | 22 |
| Max. load of worktable | kg | 1000 |
| machining range : | ||
| Longitudinal travel | mm | 1300 |
| Cross travel | mm | 700 |
| Vertical travel | mm | 700 |
| spindle nose to table surface | mm | 160-860 |
| spidle axis to column surface | mm | 760 |
| spindle : | ||
| Spindle taper | BT40 | |
| Speed Range | rpm | 40-8000 |
| Max.spindle torque | N.M | 52.5/95.5 |
| motor | ||
| spindle motor power | kw | 11 |
| Feed motor X/Y/Z | kw | 3/3/3 |
| feed : | ||
| cuttiing feed X/Y/Z | mm / min | 1-10000 |
| rapid feed X/Y/Z | m / min | 24/24/18 |
| Automatic tool magazine: | ||
| tool magazine capacity | piece | 24 |
| tool magazine type | Arm type tool magazine | |
| Max. tool diameter (full/empty) | mm | 80/150 |
| Max. tool length | mm | 300 |
| Max. tool weight | kg | 7 |
| Tool changing time (tip to tip) | s | 1.55/3.8 |
| Accuracy: | ||
| positioning accuracy | mm | ±0.005/300JIS |
| repeat positioning accuracy | mm | 0.003 JIS |
| Others: | ||
| overall dimensions(LxWxH) | mm | 3700x2500x3000 |
| N/W | KG | 9500 |
| Delivery time | 2 Months |
| Color | customized |
| Warranty period | 12 Months |
