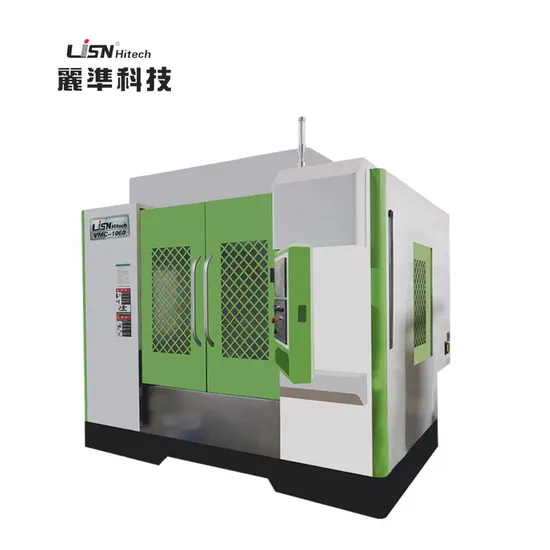

Vmc1060 Heavy Duty Version 4 Axis Vertical CNC Milling Machining Center

Product Description

Product Description


The 4 Axis version of DM-1060 is a high speed, high rigidity and high precision CNC machining center. The excellent rigidity provides a extremly stability for processing. The column of this machine is a double-wall structure design, which greatly improves the rigidity for the machine. In order to prevent the Z-axis from colliding with the column when moving fast, we designed a guide rail between the Z-axis counterweight and the column in this machine to prevent such situations. Our machine is made of FC-30 material to ensure the service life and accuracy. The range of revolutions of the spindle is 8000RPM. The high speed revolutions provides good efficiency for processing. The high rigidity bellows direct coupling is also equiped in this machine, each ball screw and servo motor uses direct connection type.
Main Features
High performance Heavy duty version vertical CNC machining Center which is good for heavy cutting, such as steel High rigidity High speed and accuracy spindle Maximum cutting feed speed is up tp 10000RPM High stability machine Vibration absorbing materials Worktable size: 600mm*1300mm (Width * Length) Maximum load bearing capacity: 900kg Detailed Photos
Product Parameters

ITEM	MODELS	DM1060
WORKTABLE (WIDTH*LENGTH)	mm	1300x600
DISTANCE BETWEEN T SLOTS	mm	5x18x150
MAX LOAD BEARING OF WORKTABLE	kg	780
X/Y/Z AXIS TRAVEL	mm	1000/600/600
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	180-780
SPINDLE HOLE TAPER		TB40
SPINDLE SPEED RANGE	r/min	8000
TRANSMISSION OF SPINDLE BOX	BELT/DIRECT	BELT/DIRECT
SPINDLE MOTOR POWER	kW	11
X/Y/Z RAPID FEED SPEED	m/min	18/18/18
MAX CUTTING FEED SPEED	mm/min	1-8000
TOOLS MAGAZINE CAPACITY	pcs	24
FULL TOOLS MAX TOOL DIAMETER	mm	80
MAX.TOOLS ALLOWABLE WEIGHT	kg	7
MAX.TOOLS ALLOWABLE LENGTH	mm	300
X/Y/Z POSITION ACCURACY	mm	0.005
X/Y/Z RE-POSITION ACCURACY	mm	0.003
MACHINE DIMENSION	mm	3200x2635x2850
MACHINE WEIGHT	kg	8300

Standard Configuration for VMC Series 1. Full Cover shield
2. Self-lubrication system
3. Working lights
4. Warning lights
5. Working condition warning lights
6. Self-powered electrical shutoff system
7. Clean air gun/ Water Tank / Transformer
8. Spindle air curtain and dust control system
9. 10000 RPM spindle
10.Worktable cleannig water gun
Optional Configuration for VMC Series 1. 24 disc manipulator tool magazine
2. Crawler chips remover
3. NC rotary table (4 Axis)
4. CTS
5. Tool detection system
6,. AJO
7. 12000 & 15000 RPM Direct connection spindle
8. Oil mist purifier
Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
