Advanced Versatile Flip Plow with Superior Hydraulic Technology

Product Description

Product Introduction:

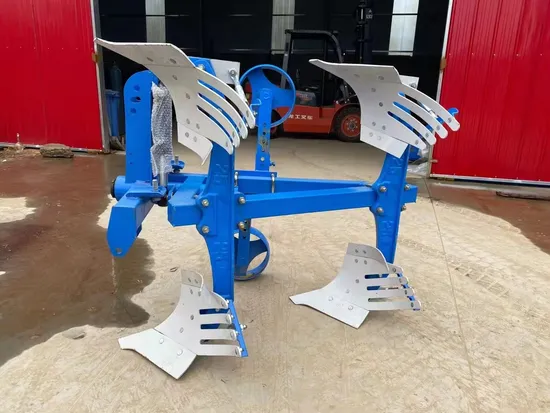

Fixed amplitude flipping plow is an agricultural machinery mainly used for farmland operations, which achieves the flipping function of the plow body through a hydraulic system. Unlike amplitude controlled flipping plows, the tillage width of fixed amplitude flipping plows is fixed and cannot be adjusted during operation. This type of plow is usually pulled by a tractor and controlled by the tractor's hydraulic system to raise, lower, and flip the plow body.
working principle:
The working principle of the fixed amplitude flipping plow involves the following key steps:
1. Plow flipping: The piston rod in the hydraulic cylinder extends and retracts to drive the forward and reverse plow bodies on the plow frame to make vertical flipping movements, alternately changing to the working position.
2. Ground wheel mechanism: The ground wheel is a dual-purpose mechanism with a screw to adjust the plowing depth, used to support the entire plow frame and ensure consistent plowing depth.
3. Connection between suspension frame and plow body: The plow body is connected to the plow frame through a plow column, and a ground wheel mechanism is installed on the plow frame.
Product parameters:

Fixed amplitude flipping plow
Model	1LF-225	1LF-325	1LF-425	1LF-525	1LF-227	1LF-327	1LF-427	1LF-527
Auxiliary power	30-50hp	40-55hp	55-70hp	80-90hp	30-50hp	55-70hp	70-85hp	90-110hp
Rack specifications	8*8*6cm	8*8*6cm	8*8cm	8*8/8*10cm	8*8cm	8*8cm	8*8/10*10cm	8*8/10*10cm
Plowing depth	25-33cm	25-33cm	25-33cm	25-33cm	25-33cm	25-33cm	25-33cm	25-33cm
Plough width	50cm	75cm	100cm	125cm	54cm	85-90cm	100-110cm	135-155cm
Weight	250kg	280kg	365kg	420kg	200kg	360/380kg	430kg	535KG
Dimensions	1.6*0.83*1.23m	2*0.83*1.23m	2.6*0.83*1.23m	3.1*0.83*1.23m	1.6*0.87*1.23m	2.3*0.87*1.23m	2.9*0.87*1.23m	3.3*0.87*1.23m

Product Tupian:

Product application direction:
1. Farmland cultivation: used to plow soil and prepare land for crop planting.
2. Soil management: Eliminate weeds and pests by flipping the soil, while burying surface residues, insect eggs, grass seeds, and fertilizers at the bottom of the ditch.
3. Environmental protection: Helps reduce soil erosion and nutrient loss, promoting sustainable agricultural development.
Packaging and transportation:
Company Profile:
Shandong Bodilan Machinery Co., Ltd. stands at the forefront of the agricultural machinery industry, renowned as a modern, comprehensive entity dedicated to research, development, production, and sales of top-tier agricultural machinery. As one of the industry's giants, it specializes in farming, harvesting, and management solutions that elevate agricultural productivity.
Our diverse product line encompasses highly adaptable agricultural machinery compatible with tractors ranging from 12-300 horsepower. Our offerings include plows, rotary tillers, disc plows, disc harrows, and deep loosening machines; precision sowing machines for crops such as wheat, corn, and soybeans; specialized planting and harvesting machines for potatoes and sweet potatoes; as well as a variety of grass machinery like lawn mowers, rakers, and balers. Additionally, we provide fertilizer spreaders for granular and organic fertilizers, sprayers, cultivators, ridgers, excavators, agricultural trailers, and a comprehensive array of machinery accessories. We also cater to bespoke requests, crafting products based on customer designs and specifications. With a robust sales network extending across numerous provinces and international markets, our products are esteemed for their reliability and have garnered widespread acclaim globally.
Boasting state-of-the-art processing equipment, including laser cutting machines, CNC machining centers, and advanced product welding and assembly lines, Bodilan Machinery significantly enhances its equipment quality and R&D capabilities. Committed to delivering modern agricultural machinery with exceptional service, we maintain a diverse procurement strategy for key components in global markets, ensuring consistent product quality. Our extensive network of nearly one hundred long-term supplier partners spans 25 provinces, cities, and autonomous regions within China.
Driven by the market and user needs, we tirelessly advance the integration of agricultural machinery and agronomy, fueling product innovation and development. Our strategic vision centers on 'survival through quality, development through quality, and efficiency through quality.' Guided by the principles of 'honesty and trustworthiness, customer first, quality first,' we prioritize independent innovation to forge core competitive advantages, bolstering our market presence within the agricultural machinery and equipment industry.
Shandong Platinum Dylan Machinery Co., Ltd. stands as a beacon of excellence, relying on a robust quality management system, cutting-edge production processes, and unwavering product reliability. Our stellar after-sales support ensures customers receive only the finest products. We warmly welcome global friends to inquire, negotiate, and inspect. Let's collaborate for mutual success and shared brilliance!
Certification report:
Company advantages:
1. Rich product line: We proudly offer a diverse array of agricultural machinery. Our selection includes plows, rotary tillers, disc plows, disc harrows, and deep loosening machines. Explore our sowing machines for crops like wheat, corn, soybeans, and vegetables. For potato and sweet potato planting and harvesting, we've got you covered. We also feature lawn mowers, rakers, balers, and various grass machinery. Enhance your operations with our fertilizer spreaders, sprayers, cultivators, ridgers, excavators, and comprehensive agricultural trailers.
2. R&D and production capabilities: Our cutting-edge facilities boast advanced processing equipment, including laser cutting machines and CNC machining centers. With state-of-the-art welding, assembly, and painting lines, we significantly boost our production and R&D prowess, elevating our equipment standards.
3. International market: Our acclaimed products transcend borders, with a strong presence in Europe, America, Australia, Africa, Southeast Asia, and the Middle East. Valued by domestic and international clients alike, our offerings have earned widespread trust and commendation.
4. Quality control: Committed to delivering state-of-the-art agricultural machinery and unparalleled service, we embrace a diversified procurement strategy for critical components in foreign markets, ensuring products of consistent excellence.
5. Supply Chain Management: We have fostered partnerships with nearly a hundred reliable suppliers across 25 Chinese provinces, cities, and autonomous regions. This bolsters the stability and cost-efficiency of our supply chain, offering robust support to our operations.
6. Corporate philosophy: Guided by principles of 'honesty, trustworthiness, and customer-first service,' we prioritize quality and innovation. Our commitment to independent innovation creates core advantages, strengthening our competitiveness in the agricultural machinery industry.
After sales issues:
For any after-sales concerns, please feel free to reach out to us.
Frequently asked questions:
1. Are you a trading company or a manufacturer?
We are a distinguished manufacturer with a professional edge.
2. What is your delivery time?
For regular stocked items, expect delivery within 7-15 days. For custom or out-of-stock goods, anticipate a delivery timeline of 30-60 days, contingent on order volume.
3. Do you provide samples?
We offer samples for smaller items, whereas large or bespoke items are not eligible for sampling.
4. What are your payment terms?
A 30% down payment is required, with the remaining balance due before shipment.
5. What is your minimum order quantity?
Minimum order quantities vary by product. Please contact us for specific details.
6. How to install the machines after they arrive?
Upon receipt of the goods, we will provide an installation video specific to the product. Follow the video for seamless installation.
7. Can your products be customized?
Customization is available, provided certain conditions are met.
8. How do you ensure the quality of your product?
Our expert team conducts rigorous quality inspections to ensure superior standards.
9. What are the trade terms?
Basically, it's FOB shipping
