Small Stone Crusher Plant Heavy Hammer Crusher Manufacturer

Product Description

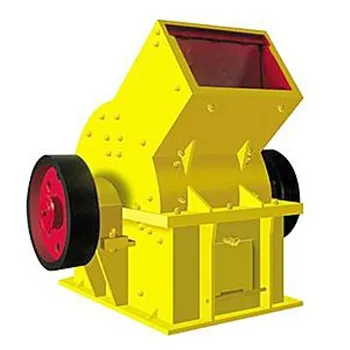

Small Stone Crusher Plant Heavy Hammer Crusher Manufacturer
Application and introduction of hammer crusher
This series of hammer crushers is suitable for crushing various materials of brittleness such as coal, gangue, coke, slay, shale and loose lime stone etc. Whose compressive resistance does not exceed 100Mpa and the surface moisture content should not be greater than 8%.
Hammer crusher crushes materials by high-speed rotation of the hammer and impacting surface of materials, it has characteristics of a simple structure, large crushing ratio and high-efficiency production, etc,and can be used for dry and wet forms of crushing.Hammer crusher is used for crushing materials that is medium-hardness and weakly abrasive. The compressive strength of the material does not exceed 100 Mpa,its water content is less than 15%.Materials are coal, salt, chalk, plaster stone, alumstone, brick, tile, limestone etc. In addition,the hammer crusher is not only used in crushing production line and sand production line ,but also can substitute cone crusher in mineral production line.
Working Principle of stone hammer crusher The main wroking part of hammer crusher is rotor with hammer, the rotors consist of main shaft, disk, pin shaft and hammers.The motor drives the rotor to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by high-speed hammer. There is a screening palte under the rotor, so that materials with size smaller than the screen mesh will be screened out and others are left to be further hammered and ground until they reach the standard size. The size of the final product can be adjusted by changing the screening plate. The gap between the rotors and the screening plate can also be adjusted according to different requirements
Technical Parameters

Type Model Feed size (mm) Discharge Size(mm) Capacity (m3/h) Motor Weight(t) Overall Size ( L*W×*H )(mm) Number of Poles Power(kw)

Hammer Crusher PC400×300 ≤200 ≤10 5-10 4 11 0.8 900×670×860 PC600×400 ≤250 ≤15 10-22 4 22 1.5 1200×1050×1200 PC800×600 ≤250 ≤15 18-40 4 55 3.8 1310×1180×1310 PC1000×800 ≤350 ≤15 25-50 4 75 4.9 1600×1390×1575 PC1000×1000 ≤300 ≤19 30-55 6 132 8 1800×1590×1775 PC1250×1250 ≤350 ≤19 35-65 6 180 14 2060×1600×1890 PC1400×1400 ≤350 ≤25 50-100 6 280 32 2365×1870×2220 PC1600×1600 ≤350 ≤35 100-150 8 480 37.5 3050×2850×2800

Company Profile
Henan Yuhui Mining Machinery Co, Ltd. is located in Zhengzhou city in central plains, which adjoins to ancient millennium Shaolin Temple (Kung fu Origin) to the south, and Yellow River to the north. With Kailuo highway and Longhai railway, it owns convenient transportation and pleasant scenery. Established in the 1970s, Henan Yuhui Mining Machinery Co.,Ltd. has developed into a famous manufacturer through 20 years struggling and progressing, specialized in producing mineral dressing equipment, compound fertilizer equipment, cement equipment, as well as sand making equipment.
YuHui provides a connected sequence service with designing process flow, on-site civil engineering guidance, installing and debugging the equipment, training technical and operating people for clients. The company guarantees repair, replacement and refund and is warrantable to the complete machine for one year. It supplies accessories for a long period. Welcome inquiries and purchase from both new and old customers as well as worldwide friends
Related Productions
Customers
Each year we have the customers from world wide to our company for visit, like America, Malaysia, Indonesia, Philiphine, Sudan, Namibia, Zimbabwe, Zambia, Ethiopia, india, peru and so on. Welcome to our company for visit.
FAQ: Q1. Is your company a manufacturing company and do you have a company certificate?A: Yes, our company is a manufacturing company and we are specialized in mining machinery for more than 40 years with two factories. Our company has owned the certificate of ISO9001:2000.Q2. Where are your products mainly exported?A: Our products are distributed throughout the world, being involved in more than Asia, Africa, South America regions. And our products win the good reputation of the foreign customers.Q3. What's the additional features of your company?A: We have our own laboratory in the company. So the clients can take some samples to perform experiments on the spot. And our engineers will provide the best advice and choice for our clients.Q4. Welcome to our company.A: We have stone product line, sand-making product line and so on. The clients can visit our production site.Q5. How do you guarantee your after service?A: Our company guarantees repair, replacement and refund and it is warrantable to the complete machine for 12 months. And we can design the site for free and provide basic materials, assembly drawings and equipment installation technical services. At the same time, we provide a connected sequence services with directing civil engineering on spot, installing and debugging the equipment, training technical and operating people abroad. Also, our engineers are assured be sent to work broad for a long period. Our company supplies accessories for a long period and lifetime warranty.
