Vacuum Homogenization Emulsification Unit (Emulsification Machine)
| US$7,600.00-15,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
ZJR-50
Application
Liquid with Suspended Solids, Powder
Application Area
Chemical, Food, Pharmaceutical
Certification
CE, ISO, GMP
Condition
New
Control System
Button Control
Cooling Method
Water Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
50-99L
Mixing Drum Shape
Double Cone
Speed Control
Single Speed
Speed Range
< 30 R/min
Stirring Type
Forced
Temperature Control
With Heating
Working
High Speed Mixer
Type
Preparation Machinery
Precision
High Precision
Customized
Customized
Finished Dosage Form
Cream, Ointment
Voltage
Customized
Name
Vacuum Homogenization Emulsification Unit
Transport Package
Wooden Case
Specification
ISO GMP
Trademark
SUPM
Origin
China
Production Capacity
500sets/Year
Packaging & Delivery
Package Size
1450.00cm * 1150.00cm * 1900.00cm
Package Gross Weight
700.000kg
Product Description

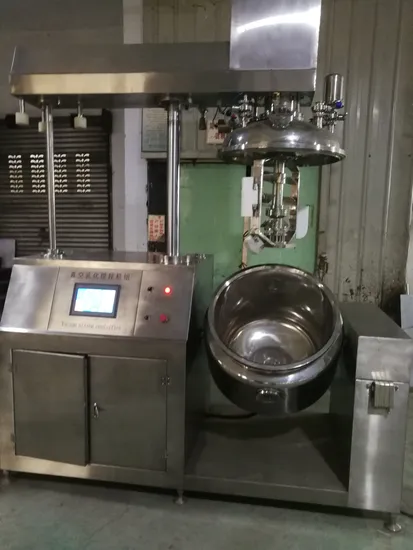

Vacuum Homogenization Emulsification Unit (Emulsification Machine)The equipment is widely used for emulsification of the pharmaceuticals, cosmetic, fine chemical products, especially the material having high matrix viscosity and solid. It works by homogenizer, fixed stirrer, scrapers residues stirrer.
Composition:
ZJR Vacuum Emulsifying Mixer Series is composed of emulsification boiler(fluctuating cover, overturn kettle form or outside circle form), water tank, oil tank, vacuum pump system, heating and temperature control systems, cooling systems, electric machinery control systems. Etc.
It can make various facial cream, lotion, shower, cream, ointment, shampoo, paste, gel, honey, meat, milk, sauce etc.
Technical parameters:
| Machine Name | ZJR-50L emulsifying machine | |
| Homogenizing kettle | Designed capacity:65L Working capacity:50L Min working capacity:15L | |
| Material | Contact material:Stainless steel 316L thickness:4mm | |
| Interlayer material:stainless steel 304 thickness: 4mm | ||
| Body:stainless steel 304 thickness: 3mm | ||
| Homogenizing way | Upper | |
| Homogenizing power: 1.5 kw | ||
| Homogenizing speed: 3500 rpm | ||
| Mix way | Frame type scraping/mixing and fixed oar | |
| Mix power: 0.75 kw | ||
| Mix speed: 0~86 rpm | ||
| Cover opening way | Electric lifting | |
| Heating way | interlayer steam heating | |
| Material discharging way | Tilt and bottom valve discharging way | |
| Parameter | Working pressure inside:-0.09Mpa Interlayer working pressure: 0.3Mpa | |
| Water boiler | Designed capacity:40L Working capacity:32L | |
| Mix way | Disperse tray | |
| Mixing power: 0.55kw | ||
| Speed: 1400 rpm | ||
| Cover opening way | Active way | |
| Temperature display | Numeral | |
| Material discharging way | Bottom discharging way | |
| Material | Contact material: stainless steel 316L thickness:4mm | |
| Interlayer material: stainless steel 304 thickness:4mm | ||
| Body: stainless steel 304 thickness: 3mm | ||
| Oil boiler | Designed capacity:30L Working capacity:24L | |
| Mix way | Disperse tray | |
| Mixing power: 0.55kw | ||
| Speed: 1400 rpm | ||
| Cover opening way | Active way | |
| Temperature display | Numeral | |
| Material discharging | Bottom discharging way | |
| Material | Contact material: stainless steel 316L thickness:4mm | |
| Interlayer material: stainless steel 304 thickness:4mm | ||
| Body: stainless steel 304 thickness: 3mm | ||
| Machine weight | 700kg | |
| Dimension | 1450mm×1150mm×1900-2400 mm | |
| Spare parts | Spare parts for 1 year | |
| Guarantee | 1 year | |
| Commissioning | By seller | |
| Working life | More than 10 years | |
