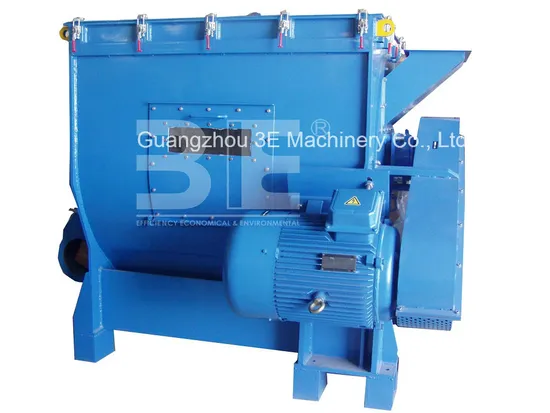

Horizontal Dewatering Machine Dryer of Recycling Machine with Ce

Product Description

3E MACHINERY'S Horizontal dewatering machine(GTH650/GTH650R/GTH650S): Suitable for plastic plate and bulkload cleaning and dehydrating. It has advantages of high dehydration rate, low power consumption highly automatic and easy operation. And It could clean away fine sand and other impurities. Separating and Water cooling bearing hold, rotate speed 1400rpm, drying the material with speed centrifugal.
Specification

Model	GTH650	GTH800	GTH800L	GTH650R	GTH800R
Item
Dimension L×W×H(mm)	1920×2370×3500	2130×2400×3600	1700×3870×4000	2935×2230×2327	2935×2510×2670
Rotor size(mm)	φ650×1500	φ800×1500	φ800×2000	φ650×1800	φ800×1700
Impeller quantity(pcs)	24	24	36	40	40
Rotor speed(rpm)	1480	1480	1480	1480	1480
Screen size(mm)	φ2-2.5	φ2-2.5	φ2.5-3.0	φ2.5-3	φ2.5-3
Screen speed(rpm)	1000	1200	1500	2	2
Main motor power(Kw)	45	55	90	55	90
Screen driving motor power(Kw)	/	/	/	1.5	1.5
Weight(Kg)	2300	2700	3900	3300	4000

Company profile
3E GROUP is an integrated company specialized in developing, manufacturing, distributing and providing recycling machinery solutions. Our main entity " Guangzhou 3E Machinery CO. Ltd" founded in 2003, has currently become focusing on "Shredding" and "Recycling industry" modern enterprise.
Technology is the core-competitiveness of 3E Group, we are active in the recycling market and keep cooperating with well-known enterprises in Europe and the USA. Meanwhile, 3E Group keeps on improving and innovating, so far, we awarded 18utility model patents and 3 invention patents.
"Efficient Economical & Environmental" is the traditional idea of 3E Group. With its own intellectual property and solid technological team, our products have been already sold to over 90 regions and countries which include the USA, Europe, Australia, Southeast Asia, Latin America, and Middle East.
Advanced production and testing equipments
3E MACHINERY equipped with advanced processing and testing equipments, in order to ensure the quality of the products. And strictly control the quality of each parts, efforts to provide the best quality products to our clients.
Certification
3E MACHINERY was awarded 18utility model patents and 3 invention patents.
Our service

1.Pre-sale support
3E Machinery consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
On-site inspection.
2. After-sale service
3E's skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a 3E technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
3E holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3. Technical support
3E provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
Regular return visit.
