Continuous Stirred Blending Stirring Stainless Steel Reactor Mixer Tanks with Jacketed Jacket Cooling Heating

Product Description

Product description Summary:
The reactor is mainly composed of the inner tank, jacket, agitator and supporting seat (the thermal insulation structure can be adopted according to the technological requirements). requirements.
Parameter:
1. Volume: 50 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, jacketed type, external coil-pipe type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year

model	50L	100L	300L	500L	1000L	2000L	3000L	5000L
Mixing Motor Power	0.75KW	1.1KW	2.2KW	2.2KW	4KW	5.5KW	7.5KW	15KW
Heating Motor Power	8KW	12KW	24KW	36KW	48KW	60KW	75KW	90KW
Inner Plate Thickness	5mm	5mm	5mm	5mm	6mm	6mm	8mm	8mm
Jacket Plate Thickness	5mm	5mm	5mm	5mm	6mm	6mm	8mm	8mm
Material	SS304, SS316L, Carbon Steel; It also can lined PTFE. It can be customized to meet your requirement.
Heating Type	electric heating, steam heating, oil circulation heating etc.
Agitator	anchor, paddle, frame etc.
Sealing Method	packing seal or mechanical seal (vacuum)
Model	We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.)
Remarks	We support OEM

Drawing
High pressure grease reactive tank

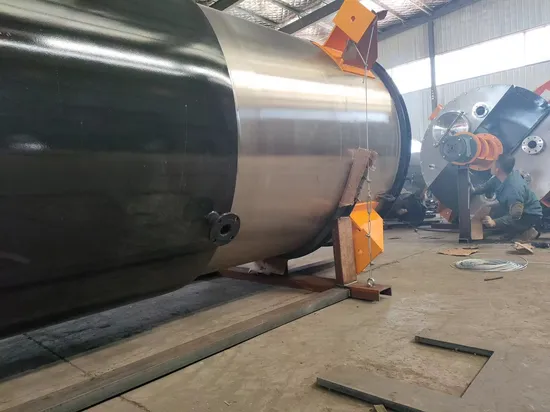

Shipping photo:
End client workshop:
Our Services
1. 24 hours hotline
2.The machine is guaranteed for one year and lifetime maintenance
3.Provide complete independent design, manufacturing, installation and other integrated services
4.Provide complete independent design, manufacturing, installation and other integrated services
5.provide online services, such as WhatsApp, WeChat or video teaching
6.Professional R& D team, independent r & d production
Q Do you accept a special order?
A: Yes ,we do ; We can manufacture all kinds of chemical equipments according to your technical drawings;
2.Q: Can you give us a quotation right now?
A: Please give us the detail of the technical so we will design and quotate for you as soon as possible;
3.Q: Do you have one in stock?
A:Sorry. We don't. All products are manufactured according to customer's requirement;
4.Q: Can you make a design for us?
A:Yes We can What we supply is not only product but also solution and design;
5.Q:Can your engineer come to our place for installation guides?
A:Yes, we can we will provide a video and document for installation;If you still have problems we will send our engineer oversea for installation guide;

For your inquiries, pls kindly let us know:
1. What is your products? Cream,toothpast, moisturizer,night cream, vanishing cream,suncream etc.
2. What is the capacity do you want for this vacuum emulsifying machine? 100L,200L300L,500L,1000L, etc.
3. Required heating method: electric heating or steam heating?
4. Required voltage and frequency of power supply? eg:380V 50Hz 3phase?
