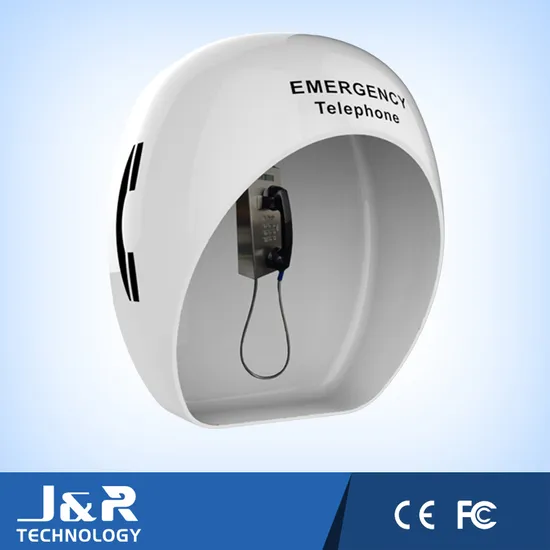

Telephone Hood for Outdoor Telepphone Sound Proof, Jr Telephone Protection Hood

Product Description

J&R Outdoor Hood,Indoor Phone Hood,Noise Resistance Hood
Model Number : JR-TH-02
Product Features
•P9042 - Acoustic insulation: Noise Attenuation up to 25 dB
•Polyethylene plastic construction
•Polyethylene material ANSI/UL94 flammability approved
•Durable, lightweight, chemical resistant body
•Excellent low temperatures impact properties
•High performance polyurethane acoustic insulation liner, resistant to mildew and rot.
Fire retardant class "0" rating
•Completely maintenance free, UV and corrosion resistant, impervious to chemical attack
•Convenient writing shelf with drainage hubs to prevent water accumulation
•Can be used both indoors, outdoors and offshore
•Permanent black handset graphic molded into the booth surface
•Standard color - Yellow or customized
•Optional colors available upon request 1
APPLICATIONS:
Indoor or outdoor, Taxi or bus station, Stree,Highway ,roadside,railway, metro station, ATM machines side,School,univuniversity and college campuses, streets, public square, car-parks, police stations, outside buildings, shopping malls, industrial areas and remote areas,etc,.
Specifications:
• Dimensions - 700*450*650
• Weight - Approx 17Kg
• Stock Colour - Yellow , Others to order
• Outer Shell - General Purpose Resin continuous filament mat - Fire Resistance to BS476 Part 7
Class 1 Surface Spread of Flame
• Cold-rolled Stainless Steel Shelf, powder coated white
• Acoustic Insulation - 50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
• Insulation Liner - White Perforated Polypropylene 3mm thickness
• Apparatus plate - Cold-rolled Stainless Steel, 2mm thickness, powder coated white
• Mounting Brackets -Cold-rolled Stainless Steel, 6mm thickness

Product Name	Acoustic Telephone Booth
Model No.	JR-PH-01
Materials	fiberglass reinforced polyester(GRP)
Size	700*450*650
Application	• Refineries • Aerospace • Nuclear facilities • Factories • Chemical plants • Bulk loading stations • Mines • Drilling rigs • Steel mills • Off shore platforms (AB-1000 only) • Any high noise industrial location and more .

Accessories and Options:
Each Acoustic Booth can be fitted with a JR telephone
suited for specific needs and requirements, and equipped with:
• LED Strobe Light
•Industrial speaker/ringer, speaker
or ringer (up to 110 dB)
