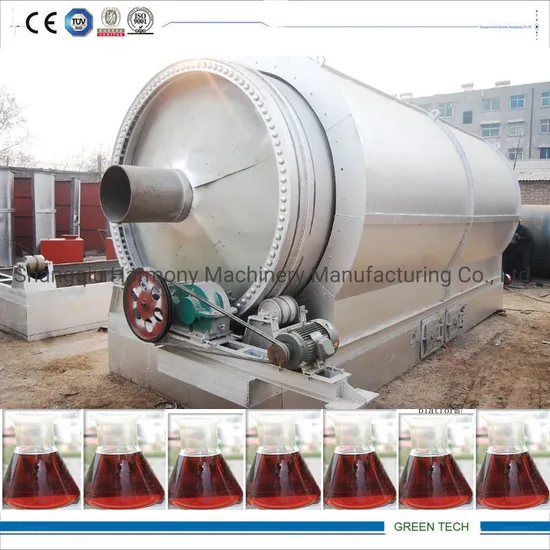

12ton Plastic Oil Making Plant by Pyrolysis Zero Pollution

Product Description

1. Technical parameters

NO.	Name	Parameter
1	The raw materials:	Waste tyres,
2	Daily capacity:	12 ton/day
3	The size of reactor	2800*6600mm 16mm thickness
4	Reactor material	Q345R
5	Average oil productivity:	30%-80%,
6	Pyrolysis time	6-8 hours
7	Discharge time	1.5 hour
8	Feeding time	3 hourS
9	Cooling time	3 hours
10	Working pressure	Normal /slightly negative
11	Power	18 kw
12	Fuel	Coal. Wood, gas etc
13	Working area	1000 square meters
14	Total weight	35 000kgs
15	Reactor rotate speed	0.25-0.4/min
16	Noise	No less than 85dB
17.	Plant working area	700-1000 square meters

2. Major parts:
Reactor with base and cover
Oil -gas separator
Heavy oil tanl
Cooling system
Light oil tank
Water sealing
Dedust system
Waste gas recycle system
Slag out device
Control board
3. Work flow
Loading plastic into reactor
Heating reactor
After heating, solid plastic converted to oil gas
Oil gas go into oil-gas separator, heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
After cooling, light oil gas change to liquid oil and go into light oil tank
Non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
Smoke produced by heating reactor will go to dedust system, after dedust system treatment, smoke change to white clean waster steam, then go to sky through chimney.
4. Oil rate

Item	Raw material	Oil Output
Tires	Steel Wire Tire	40%-55%
	Nylon Tire	≈40%
	Bicycle tire	≈35%
Paper Pulp	Coarse Material	≈20%
	Water Washing Material	23% -30%
	PE Material	≈70%
Cable Skin	PE Cable Skin	≈85%
	PVC Cable Skin	≈25%
	Pure Rubber Cable Skin	≈35%
	Telephone Wire	≈50%
Life Garbage	Pure Plastic Bags	≈50%
	Coarse Material With Water	≈15%
Weaves & Handbags		≈60%
Shoes	Black Rubber	≈35%
	Sports Shoe's Sole	27%-33%
	Gum Outsole	≈35%
Plastic`	Pure PP	≥65%
	Pure PE	≥70%
	PO, PS	≈30%
	ABS	≈40%
Others	Common Rubber Pipe	≈30%
	Carpets	≈35%
	Aluminum Foil	≈35%
	Car Glass Bead	≈50%
	PP Beverage Bottle	≈50%

5. Plant features:
1. )Environmental protection equipment: The complete set of unit produces
No smoke and no smell
2. ) High efficiency and good performance: The output capacity of pure raw
Is more than 80%. Net oil yield over more than 40%
3. )The design of unit is reasonable and advanced: Fatey and easy to use
6. Oil parameter

Project	Tire oil	Plastic oil
Water content	3%-5%	3%-5%
Sulfur content	0.3%-0.5%	0.3%
Density (g/ml)	0.86-0.94	0.84-0.94
Cetane number	30	30
Combustion value (kcal)	9500	9000
Asphalt	≤0.5%	≤0.8%
Ash	≤1%	/
Impurity	1%-3%	/
Solidifying point( ºC)	-10	10
Flash point ( ºC)	30-40	20-35

7. Term and condition
)Payment term: 30% TT advance payment 70%TT payment before plant shifting.
)Delivery time: For batch type plant, loading plant within 20days after getting your advance payment, for fully continuous plant, loading plant within 50days
)About installation: We will send technician for guiding installation and test machine and training your workers for free. The Installation period is one months, buyers offer round tickets and accommodation for our technician.
)Warranty: The whole set plant warranty period is one year (easy-ware parts except). The reactor warranty is 3 years. We will not be responsible for problems caused by personal wrong operation
8. You may interest:

Pyrolysis plant (convert waste to fuel oil )	Type	Daily capacity	Used for	Final Product and usage
	Batch type	5Ton 10ton 12ton 15ton	Waste tyre Plastic Rubber Oil sludge Oily waste Others	Fuel oil Used for heating boiler as furnace oil Or refined for distillation oil
	Semi-continuous type	15Ton, 20Ton
	Fully continuous type	20ton 30ton 60ton
	Special type	20Ton 15ton

	Type	Daily capacity	Used for	Final Product and usage
Distillation plant Refining fuel oil/waste oil diesel	Fully continuous type	5ton 10ton 15ton	Used motor oil Used lube Washing parts oil Pyrolysis oil Crude oil Others	Diesel for engine
