Heavy Duty Universal Turret Milling Machine
| US$10,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6336WA
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Type of Machine
Turret Milling Drilling Machine
Spindle Taper
ISO40 ISO50
Main Motor
5HP
Table Size
1500X360mm
Worktable Travel
900X390X500mm
Spindle Speeds
75-4660 Rpm
Table Swivel
45 Degree
Max.Loading Weight
400kgs
T-Slot
3-18-80 mm
Transport Package
2180X1950X2380 mm
Specification
2350kgs
Trademark
tokmc
Origin
Tengzhou China
HS Code
84595900
Production Capacity
100 Sets/Month
Product Description

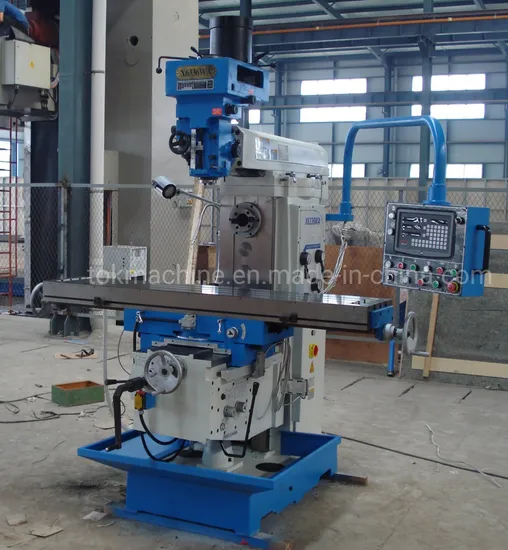

X6336WA Heavy Duty universal turret Milling Machine•Taiwan High speed milling head,5HP
•45 degree table swivel
•Three axes auto feed
•Large torque ans strong power
•Fast moving 2000 mm/min
•Rectangular guideway
| Specification | X6336WA |
| Spindle taper | ISO40(V) ISO50(H) |
| Distance from spindle to table | 30-510mm |
| Spindle speeds | 75-4660r.p.m(V) 40-1300r.p.m(H) |
| Table size | 1500x360 mm |
| Max.rotations angle of table | ±45 |
| Table travel(horizontal/cross/vertical) | 900x390x500mm |
| Feeding range of longitudinal cross travel | 860x350x450mm |
| Feeding range of longitudinal travel | 30-600 mm/min 8 steps |
| Feeding range of cross travel | 22-410mm/min 8 steps |
| Feeding range of vertical travel | 15-220 mm/min 8 steps |
| X Y Z axis rapid feed speed | 1300 /1200/ 600 mm/min |
| Feed motor | 1.1 kw |
| Max. Weight of workpiece | 400 kgs |
| T-slot number width distance | 3-18-70 mm |
| Main motor | 5HP (V) 4KW(H) |
| Overall dimension | 2180X1950X2380 mm |
| N.W./G.W. | 2350/2600KG |
