DSC Differential Scanning Calorimeter Calorimetry Thermal Analysis Machine Analyzer

Product Description

Product Description DSC Differential Scanning Calorimeter Calorimetry Thermal Analysis Machine Analyzer
Product Introduction:

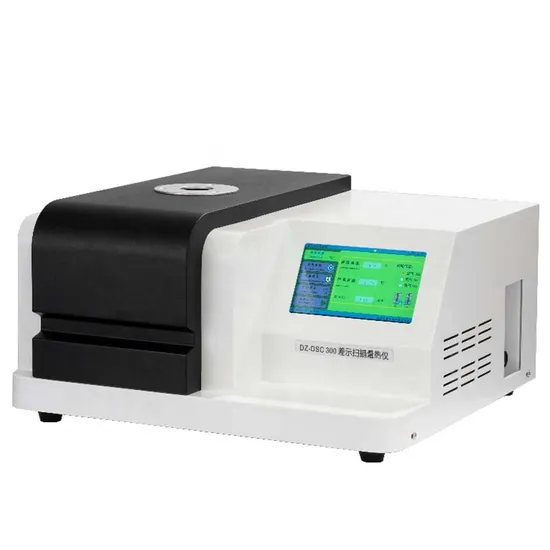

LR-dsc300c is the company launched DSC series of products with the highest accuracy of one, the sensor is the use of imported material E-couple, high precision, high sensitivity, good repeatability, signal acquisition circuit shielding protection, strong anti-interference, baseline stability and repeatability is very high.
Dz-dsc300 differential scanning calorimeter, can be glass transition temperature, phase transition temperature, melting point, enthalpy value, curing temperature and product stability, oxidation induction period and other tests.It is qualified for the research of pipe, polymer, chemical, food, medical and other fields, and serves universities, enterprises, third-party measurement and quality inspection units, with a wide range of applications to meet the testing needs of various industries.
DSC Differential Scanning Calorimeter Calorimetry Thermal Analysis Machine Analyzer
Product Parameters

Temperature range	-40~600ºC	temperature resolution	0.001ºC
temperature fluctuation	±0.001ºC	Temperature repeatability	±0.01ºC
Heating rate	0.1 ~ 80ºC/min	Constant temperature time	program setting ≤24h
Temperature control mode	heating, constant temperature, cooling (automatic program control)	DSC range	0 ~ ±600mW
DSC resolution	0.01uW	DSC sensitivity	0.001mW
Power supply	AC220V/50Hz or customized	Atmosphere control gas	nitrogen, oxygen (program setting/automatic switch)
Gas flow	0-300ml /min	gas pressure	0.2mpa
Display mode	24bit color, 7 inch LCD touch screen display	Data interface	standard USB interface
Parameter standard	equipped with standard material (indium, tin), users can adjust the temperature by themselves	cooling device	semiconductor cooling device (optional liquid nitrogen refrigeration & LT;- 150 ~ 550 ºC & gt;)

18. The instrument has multiple groups of thermocouples, one group to measure sample temperature, one group to measure furnace body temperature, and one group to measure internal environment temperature


DSC Differential Scanning Calorimeter Calorimetry Thermal Analysis Machine Analyzer
Technical features:
1. Industrial grade 7 inch touch screen, display rich information
2. New furnace body structure, better baseline, higher accuracy.Heating adopts indirect conduction mode, high uniformity and stability, reduce pulse radiation, better than the traditional heating mode.
3.USB communication interface, strong commonality, reliable communication without interruption, support self-recovery connection function.
4. Automatic switching of two air flow, fast switching speed, short stability time.At the same time, a protective gas input is added.
5. Software is simple and easy to operate.
6. Ultra-high sensitivity, accuracy, 0.001 MW, 0.001ºC
7. Exquisite technical indicators, superior performance, cost-effective, widely used
