Automatic Double Portrait Horizontal Single-Axis Solar Tracker System

Product Description

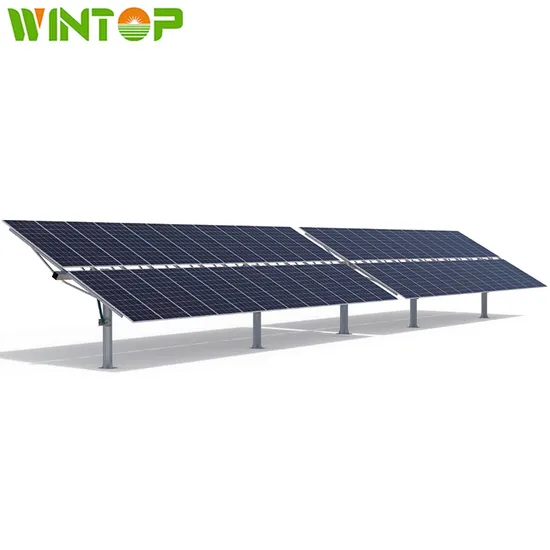

Automatic Double Portrait Horizontal Single-axis Solar Tracker System Product Description Wintop double portrait horizontal single-axis solar tracker system,a double-row solar panel can generate more electricity at the same time than a single-row solar panel.
The single-axis solar tracker rotates on one axis and moves back and forth in one direction. Different types of single-axis trackers include horizontal, vertical, tilt, and polar alignment, which rotates as the name implies.
Product Parameters

PV-Modules
PV- Modules supported	Fully fit for 210 module
Structure
System type	One portrait horizontal single-axis tracker
Maximum capacity per row	54kWp (Estimated with 600W PV-Modules)
PV- Module quantity per row	2PX45,2PX30
Tracking Range	±60°(Customized according to project)
Tracking accuracy	±1°
Motor quantity	1 motor per row
Structural Materials	HDG Steel, Al- Mg-Zn Coating Steel
Foundation	Concrete foundation, Steel pile, PHC pile
Quantity of foundation/MW	130 PCS/ MW (Estimated with 600W PV-Modules)
Electrical
Solar tracking method	Astronomical algorithm + closed- loop control (AI)
Control system	MCU
Signal transmission	Wire (RS485) or wireless (Zigbee)
Drive method	Slew Drive
Motor Type	24V DC Motor
Power supply	AC- powered or self- powered
Backtracking	Yes
Manual operation	Yes
Protection function
Wind protection	≥18m/s
Night stow mode	Yes
Overheat prevention	Yes
Overheat prevention	Yes
System fault self-diagnosis	Yes
Rotate to horizontal time	4-5min
Environment
Wind load	Customized according to local condition
Operating temperature	-30°C ~ +60°C
Operating temperature	C5
Slope tolerance	North-south 10%~20%, East-west no limits
Other
Special tools	Not required
Load design standard	GB, ASCE, BS EN,AS (according to project)

Electrical Principle
Features & Benefits Fully fit for 210 module Intelligent AI algorithm to improve power generation Adaption to various terrains allowing a north-south slope up to 10% to 20% Easy installation and easy maintenance Stable and reliable operation Power generation increasement of 15-30%
Main Structure components
CPP Wind Tunnel Test Wintop established a partnership with CPP, the first American company to provide wind engineering services to architects and engineers. Combining the frequency and characteristics of damping ratio of the WT-tracker tracking system, study the resonance, flutter, gallop, torsional divergence and other results of the WT-tracker system caused by aerodynamics, and analyze the influence and instability during the operation of the system.
Wintop Multi-drive Solar Tracker Advantages:
System Damping Ratio is greater Reduce Amplitude on Modules by 50% Reduce the Force on Torque Tube by 50% Reduce the Force on Driving Pillar by 50% Reduce Torsion Angle on Torque Tube by 50% Optimize Wind Resistance System Traditional Single-drive Tracking System WTT Multi-drive Tracking System
Operating Mode
Terrain Adaption
WT-Tracker System Flexible Layout Fully Use Irregular Land, Improve Land Utilization 20% N-S Slope Unlimited E-W Slope Foundation Options

Type of Foundation	Steel Piles	Concrete with Steel Piles	Poured Concrete Pile	PHC Piles	PHC Piles
Application	Soft Ground	Soft Ground	Gravel Ground	Agriculture PV Complementary	Fishery PV Complementary
Connection Method	Direct Ramming	Ramming+Conc rete	Anchor Bolt Connection	Pile-Top Welding	Pile-Top Welding
