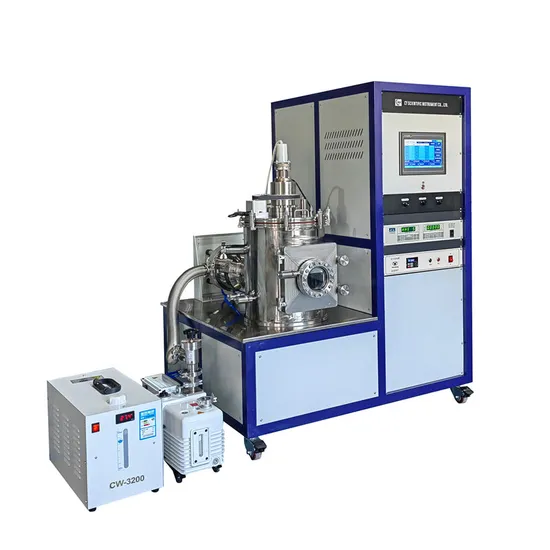

High Vacuum Thermal Evaporation Coating Machine Evaporation Coater for Evaporating Metal Film

Product Description

High Vacuum Thermal Evaporation Coating Machine Evaporation Coater for Evaporating Metal Film
Product Description
OVERVIEW--THERMAL EVAPORATION
Thermal evaporation is a popular physical vapor deposition technique because of its simplicity. During this process, a material in a high-vacuum environment is heated to its evaporation point by joule heating of the resistive boat in which it is located. The vaporized molecules then travel from the source to the substrate where they nucleate together, forming a thin film coating. A wide variety of materials can be deposited using this technique such as aluminum, silver, nickel, chrome, magnesium, among many others.
Features of thermal evaporation coating machine:
There are three groups of evaporation sources in this equipment, which are tungsten boat evaporation sources and water-cooled copper electrodes, which can support a maximum current of 260A, and the heating temperature can reach up to 1800ºC. It can realize the evaporation of various refractory metals.
The three groups are independent Thermal evaporation source, will not cause mutual contamination of plating materials. The equipment adopts an integrated design, the cavity and the electric control part are separated left and right, which realizes the separation of water and electricity, and effectively ensures the safety of users.
The electronic control part adopts the design of the combination of touch screen and button panel. Auxiliary functions such as vacuum system and sample stage are operated by one button on the touch screen, and power-on evaporation and film thickness control are operated independently through the panel, which is as convenient as possible for users at the same time. Avoid the possibility of misuse.
he equipment has perfect design and excellent performance, and is a must-have for high-precision evaporation coating experiments in laboratories.
Product Parameters
Specifications of thermal evaporation coater:

Vacuum Thermal Evaporation Coater
Sample Stage	Size	φ150mm
	Heating	Max. 500C
	Rotary	0~20rpm, adjustable
Evaporation source	Tungsten boat/Basket*3
Power	Each evaporation source comes with an DC power supply. Thye Can work independent or at the same time.
Vacuum chamber	Cavity size	φ300x400mm
	Observation window	Front φ100mm
	Cavity material	SS304
	Opening	Front door opening
Film thickness control	Quartz crystal film thickness monitor, Frequence 0.10 Å
Vacuum system	Backup pump	Rotary Vane Pump, 1.1L/s
	Exhaust port	KF16
	Secondary pump	Molecular pump, 600L/s
	Exhaust port	CF160
	Vacuum measurement	Composite vacuum gauge
	Ultimate vacuum	5.0E-4Pa
Control System	PLC+ touch screen
Other	Supply voltage	AC380V,50Hz
	Overall size	1000*800*1500mm
	Total power	7kW
	Total Weight	350kg

Detailed Photos
1. We have thermal evaporation coater with 1/2/3/4/8... evaporation sources, can evaporation metal and organic material.
2. Chamber material: High purity quartz--- low vacuum, SS304 chamber-- high vacuum.
3. Film thickness monitor is optional.
4. Thermal evaporation, E-beam, magnetron sputtering in one machine is available.
5. Different material of evaporation source is available.
6. Customize thermal evaporation coater according to your process is available.
Company Profile
Zhengzhou Tainuo Film Materials Co., Ltd. is a comprehensive company integrating design, research and development, production and sales.
Our company's main products are: spin coater, thermal evaporation coater, magnetron sputter coater, plasma sputter coater, E-beam evaporation coater, PLD pulse laser coating machine, plasma cleaner, CVD system, PECVD system, diamond wire cutting machine, melting furnace/stove, arc melting furnace, etc.
Our products are widely used in the field of materials science research. We have extensive cooperation with domestic universities, laboratories, and new material companies. It has been successfully exported to more than 20 countries and regions including the United States, the United Kingdom, Germany, Russia, Switzerland, Canada, Brazil, etc. and have established long-term cooperative relationships with local dealers.
If you are conducting materials research, please contact us and we will provide you with customized services to make your research experiments smoother!
