China Fiberglass Direct Roving 300tex for Fiberglass Mesh

US$0.75

1,000-1,999 kg

US$0.65

2,000-3,999 kg

US$0.55

4,000-7,999 kg

US$0.45

8,000-15,999 kg

US$0.35

16,000+ kg

Basic Info.

Model NO.

ECR24-4800D-601

Yarn Structure

Single Yarn

Surface Treatment

Vinyl Coated

Fiberglass Type

E-Glass

Color

White, Black, Grey, Red, etc

Application

FRP, GRP Reinforcement Pipe

Transport Package

Carton + Pallet

Specification

8 G/M2 - 1800 G/ M2

Trademark

czhontech

Origin

China

HS Code

7019909990

Production Capacity

2000 Tons/Month

Packaging & Delivery

Package Size

110.00cm * 110.00cm * 70.00cm

Package Gross Weight

20.000kg

Product Description

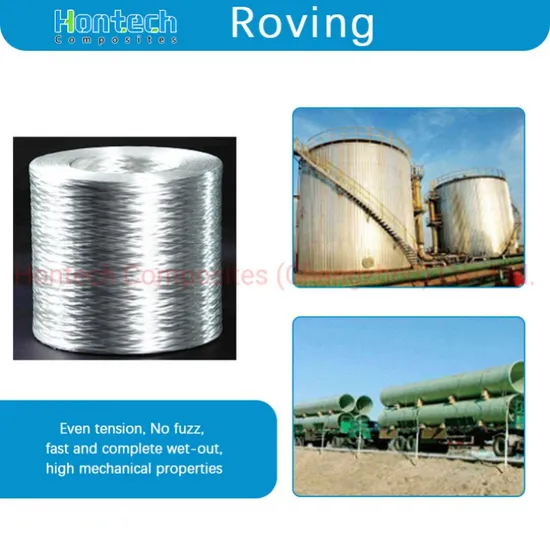

Fiberglass Roving
Product Parameters
Roving For Filament Winding

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR22-2000D-601	±5	≤0.10	0.40-0.70	≥0.40	22	UP,VE,EP
ECR17-2400D-601	±5	≤0.10	0.40-0.70	≥0.40	17
ECR24-2400D-601	±5	≤0.10	0.40-0.70	≥0.40	24
ECR24-4800D-601	±5	≤0.10	0.40-0.70	≥0.40	24
ECR24-9600D-601	±5	≤0.10	0.40-0.70	≥0.40	24

Direct Roving For High Pressure Pipe

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-2400A-603	±5	≤0.10	0.40-0.70	≥0.40	13	EP
ECR17-1200D-603	±5	≤0.10	0.40-0.70	≥0.40	17
ECR17-2000D-603	±5	≤0.10	0.40-0.70	≥0.40	17
ECR17-2400D-603	±5	≤0.10	0.40-0.70	≥0.40	17

Roving For Pultrusion

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR17-2400D-601	±5	≤0.10	0.40-0.70	≥0.40	17	UP,VE,PF
ECR24-2400D-601	±5	≤0.10	0.40-0.70	≥0.40	24
ECR24-4800D-601	±5	≤0.10	0.40-0.70	≥0.40	24
ECR24-9600D-601	±5	≤0.10	0.40-0.70	≥0.40	24

Direct Roving For Insulation Composite

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR16-2400A-611	±5	≤0.10	0.40-0.70	≥0.40	16	EP
ECR16-4800A-611	±5	≤0.10	0.40-0.70	≥0.40	16
ECR16-9600A-611	±5	≤0.10	0.40-0.70	≥0.40	16
ECR16-19200A-611	±5	≤0.10	0.40-0.70	≥0.40	16

Roving For Optical Cable Reinforced Core

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-300D-602	±3	≤0.05	0.45-0.65	≥0.40	13	VE
ECR15-600D-602	±3	≤0.05	0.45-0.65	≥0.48	15
ECR17-1200D-602	±3	≤0.05	0.45-0.65	≥0.48	17

Roving For Spray-up

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-2400A-823	±5	≤0.10	1.05-1.40	≥0.40	13	UP
ECR13-3200A-823	±5	≤0.10	1.05-1.40	≥0.40	13
ECR13-4800D-823	±5	≤0.10	1.05-1.40	≥0.40	13
ECR13-2400A-823P	±5	≤0.10	1.05-1.40	≥0.40	13

Roving For SMC

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-4800A-822	±5	≤0.10	1.15-1.40	≥0.40	13	UP,VE
ECR13-2400A-822	±5	≤0.10	1.15-1.40	≥0.40	13
ECR13-2400A-829	±5	≤0.10	1.15-1.40	≥0.40	13

Roving For Panel

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-2400A-812	±5	≤0.10	0.45-0.70	≥0.40	13	UP

Roving For Chopped Strand Mat

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-2400A-810	±5	≤0.10	0.40-0.60	≥0.30	13	UP,VE
ECR13-3600D-816	±5	≤0.10	0.40-0.60	≥0.30	13
ECR13-4800D-835	±5	≤0.10	0.40-0.60	≥0.40	13

Chop Roving For Pipe

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-2400D-826	±5	≤0.10	0.40-0.60	≥0.30	13	UP,EP

Roving For Automotive Headliner

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-2400A-525	±5	≤0.10	1.20-1.50	≥0.40	13	UP,VE,PU
ECR13-4800D-525	±5	≤0.10	1.20-1.50	≥0.40	13	UP,VE,PU

Roving For Prepreg

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR13-600D-612	±5	≤0.10	0.40-0.70	≥0.40	13	UP,EP,ETC
ECR16-1200D-612	±5	≤0.10	0.40-0.70	≥0.40	16
ECR16-2400D-612	±5	≤0.10	0.40-0.70	≥0.40	16

Roving For Fabrics

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR17-1200D-608	±5	≤0.10	0.40-0.70	≥0.40	17	UP,VE,PR
ECR15-600D-608	±5	≤0.10	0.40-0.70	≥0.40	15
ECR13-200D-608	±5	≤0.10	0.40-0.70	≥0.40	13
ECR13-4800D-608	±5	≤0.10	0.40-0.70	≥0.40	13

Yarn For Weaving

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm
ECR11-136x1S28-368	±5	≤0.50	0.40-0.70	≥0.45	11
ECR11-136x1S28-366	±5	≤0.50	0.40-0.70	≥0.45	11
ECR11-100x1S28-365	±5	≤0.50	0.40-0.70	≥0.45	11
ECR11-200x1S28-365	±5	≤0.50	0.40-0.80	≥0.45	11
ECR11-270x1S28-365	±5	≤0.50	0.40-0.80	≥0.45	11
ECR11-270x1S28-365	±5	≤0.50	0.40-0.80	≥0.45	11
ECR11-410x1S28-365	±5	≤0.50	0.40-0.80	≥0.45	11

ECR Glass Fiber Roving For PU Pultrusion

Code	Linear Density Tolerance%	Moisture content%	LoI%	Tensile Strength N/TEX	Filament Diameter μm	Compatiable Resin
ECR17-1200D-681	±5	≤0.10	0.40-0.70	≥0.40	17	UP
ECR17-1700D-681	±5	≤0.10	0.40-0.70	≥0.40	17	UP

Our advantage

Customer Complaint	0%
In-time shipment rate	98%
Recipe customization	Support
After-sales service	Support
Free samples	Available
Flexible payment methods	Support
