Semi-automatic Lab Fabric Sample Weaving Loom

Product Description

Product Description

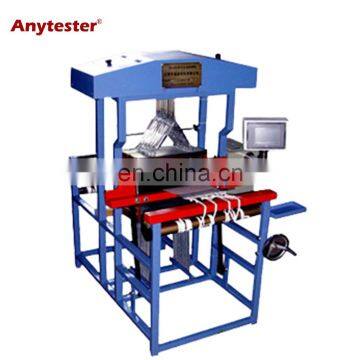

Product DescriptionAT246A Semi-automatic Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc. Features1. Integrally welded by seamless rectangular steel pipe, reasonable construction and good rigidity;2.Outer surface treated by baking varnish, good brightness and nice appearance;3. Adopting pneumatic shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;4.Stable operation, low noise and high reliability;5.PLC control touch screen, storing 6pcs of pattern cards and 1000 lines reachable for each pattern card;6.With computer interface to achieve the communication between PC and PLC. Specification ModelAT246AReed width16, 20 inchesColor selectionmanualNo. of heald frame16 ( 20 or 24 optional)Take-upmanualBeating-upmanualHeald liftingPLC control, pneumaticAir pressure0.45~0.8MPaAir consumption200L/min max.Power supply1 phase, 220V, 50HzDimension1300×980×1510mm
