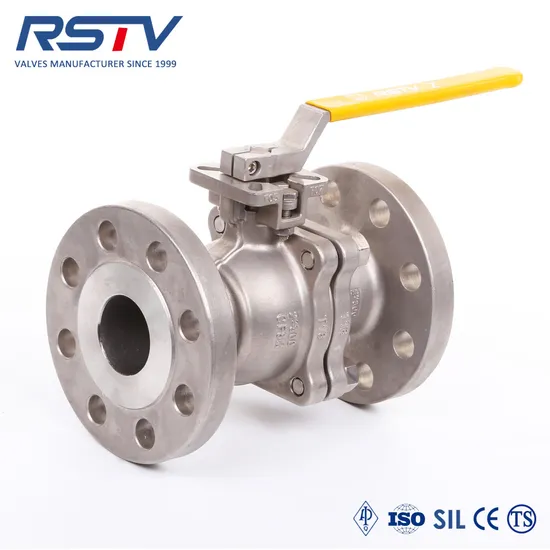

Rst DIN Pn16/Pn25/Pn40 2PC Flanged Full Port Ball Valve 1.4408 / 1.4308 304 316 316L

Product Description

Product Description RST DIN Pn16/Pn25/Pn40 2PC Flanged Full Port Ball Valve 1.4408 / 1.4308 304 316 316L
RST Valve company is a industry valves manufacturer, including Thread & Flange Ball Valves, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel. Flanged Ball Valve includes 1PC Stainless Steel Flange Ball Valve, 1PC Carbon Steel Flanged Ball Valve, 1PC API/DIN Flanged Ball Valve, 2PC API Flanged Stainless Steel Ball Valve, Two Piece DIN F4/F5 Flanged Ball Valve, 2 Piece JIS 10K Full Port Flanged Ball Valve, 2PC Floating Flanged Ball Valve with ISO5211 Direct Mounting Pad, 2PC CF8M/WCB Flanged Ball Valve, 3PC API/DIN standard Flanged Ball Valve, 3PC Stainless Steel Floating Flanged Ball Valve, Three Piece CF8M 150LB Flanged Ball Valve, 3 Piece Full Port PN16/40 Flanged Ball Valve. RST VALVE is one of the professional Ball Valve Manufacturer in china. We supplies: floating ball valve,trunnion ball valve,metal seated ball valve,threaded end ball valve,butt welded ball valve,Forged steel ball valve etc, We can manufacture and supply ball valve according to your requirements Main material of the products are A105, WCB, C5,WC6, WC9,CF8, CF8M, 316 and so on. Tops Valve design by the standards of API6D, ASME, ANSI, JIS, DIN, BS, GB, etc. DIN 2PC Flange Ball Valve provides a high quality yet economical two piece flanged full-bore ball valve solution in DIN PN16 and PN40. Designed for safety, long life and easy maintenance, this valve assembly features rugged construction, full-bore uninterrupted flow path, and blow-out proof stem and packing. Ideal for operation in harsh environments such as chemical processing, petrochemical, oil and gas production, pulp and paper and more.

Product Name	RST DIN Pn16/Pn25/Pn40 2PC Flanged Full Port Ball Valve 1.4408 / 1.4308 304 316 316L
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	1/2~8 inch ( DN15~DN200)
3. Thread standard	ISO9001 & CE, TS
4. Port	Full Port
5. Working Pressure	PN16/40/64
6. Connection Ends	Flange
7. Working Temp.	-20~300ºC, or according to customer requirements for different industry.
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Operated	Handle operated, Locking device is option
10. Inspection & Testing	According to API598
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Country of Origin	Wenzhou city, China
Production Capacity	6000 ton/year
MOQ	10 PCS/size

Specifications:

1. Construction
All valve bodies feature a sturdy two-piece construction and machined mounting pad conforming to ISO 5211 for easy automation; direct mounting of pneumatic or electric actuators, limit switches, and handle extensions.
2. Seats
Resilient slotted seats are designed for bubble-tight shutoff at high and low pressures, reduced friction for less wear; minimum seat damage, and lower operating torque. Seats are furnished in TFM, Virgin PTFE, or glass filled PTFE as standard. Additional materials are available in Ball Valves Seat Variations' Bulletin T-624.
3. Stem
The high performance valve stem assembly offers blow-out proof safety features plus long service life. The stem is guided by the valve body and an adjustable packing gland fitted with live loaded spring washers that compensate for surges in pressure and temperature. RST stem and packing design assures smooth operation, minimized operating torque and less wear.
4. Ball
Mirror polished to a corrosion resistant, low torque finish to prevent ball seat wear, the solid ball is precision machined with a pressure relief hole in the stem slot to equalize pressure in the body cavity for bubble-tight shutoff and long service life.
5. Body & Trim Materials
Standard valve body materials are 1.44081.4308 Stainless Steel and 1.0619 Carbon Steel. Standard trim material for ball and stem is 316 Stainless Steel. For Carbon Steel valves DN65 and up, standard trim is 304 Stainless Steel.
6. Antistatic
An anti-static device is built into the valve stem, to ensure electrical continuity between valve ball, stem and body; eliminating the possibility of static electrical charges creating sparks within the valve, especially when handling volatile media.
7. Valve Body Finish
Carbon Steel valve bodies are painted for optimum protection. Stainless Steel valves are provided with a natural finish. Valves comply with the highest industry standards in body finishing processes and procedures.
8. Fire Safe Valves
RST fire-safe valves are designed and tested to the requirements of API 607 5th Edition and to ISO 10497-2004 specifications. Valves for fire-safe application are identified by the prefix "AF". Fire-safe certificates are available upon request.
9. Secondary Sealing
All fire-safe valves are fitted with flexible graphite body seals and graphite stem seals. Flexible graphite exhibits unsurpassed sealing properties for high temperature, high pressure service. In the event of a fire, a secondary metallic machined ring makes contact with the ball to prevent leakage and provide shutoff in conformance with the latest industry fire-safe requirements.
10. Valve Accessories
A locking device to secure valve position is standard. RST carries a range of valve control accessories to suit your needs including manual gear operators for large valves, declutchable gear operators for actuated valves, spring return handles for dependable automatic opening and closing, limit switches for on-off indication and other products such as positioners, indicators,overrides and regulators.

Technical Specification:
Design & Manufacture standard: DIN3357 Pressure & Temperature standard: DIN3230 Face to face dimension standard: DIN3202 Flange standard: DIN2543-2545/DIN 2501 Test & Inspect standard: DIN2401.
Product Feature:
Floating ball, full bore or reduce bore. ISO5211 mounting pad for option. Blow-out proof stem design. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition). Fire-proof and anti-static design if need. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
Competitive Advantage:
An ISO9001 ,CE certified manufacturer GOOD QUALITY RESONABLE PRICE ON-TIME DELIVERY STRICT EXAMINATION SINCERE SERVICE 18 MONTHS GUARANTEE

RST VALVE is looking forward to strengthening cooperation with various sectors of society to create brilliancy together.
RFQ Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
