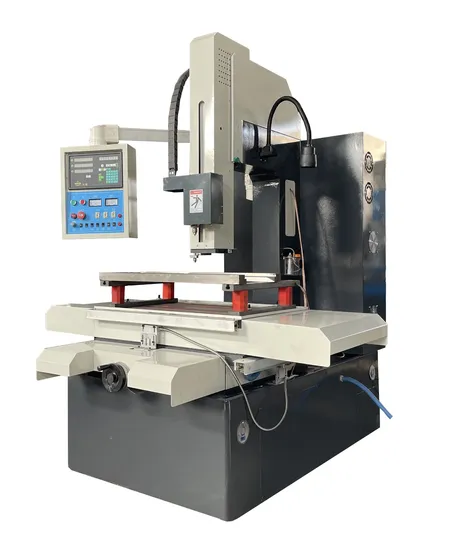

Dd703.40 Small Hole Drilling EDM Machine

Product Description

Main Feature:
Drilling diameter from 0.3mm to 3mm. The maximum depth ratio could be 300:1.
Auto deep control, blind hole can also be maken.
Precision (hole straightness) is less than 0.04 mm.
Can drill on oblique and curved surface directly.
X,Y axis digital read out, Z axis digital read out as optional. ( Depth setting is optional)
Fast processing speed and low consumption.
Can use water as coolant, low cost and no pollution.
Specification:
LINFENG CNC Technology Co., Ltd, one of the professional EDM machine manufacture, specialized in developing and producing from 2002, start exporting from 2008. We have exported to more than 50 countries so far.
Our development is originated from untiring pursuit and unceasing innovation, always adhere to the operation philosophy: Quality Priority, Innovative development, customer oriented, sustainable management. Also never stop to working with university, Institute to develop and improve discharge system and control system.
With about 20 years developing, LINGFENG can supply full range of EDM including: High speed economy WEDM ( EDM wire cut machine) Multi-cut precise WEDM ( EDM wire cut machine) Special WEDM, such as Bid WEDM with Separated bed, Multi head WEDM Sand wire cutting machine EDM Die Sinking machine ( ZNC and CNC) EDM drilling machine ( ZNC and CNC) We are ISO9000 certified enterprise, we not only supply machine to customers, also supply complete solution and training, service, advise for customers. LINFENG always grow with our partners including suppliers, dealers, end users. Create the value and future hand in hand.
FAQ: Q1:Are you a manufacturer?
A: Yes, LINFENG CNC Technology Co., Ltd, one of the professional EDM machine manufacture, specialized in developing and producing from 2002, start exporting from 2008. We have exported to more than 50 countries so far.
Q2: What are your main products?
A: With about 20 years developing, LINGFENG can supply full range of EDM including:
High speed economy WEDM ( EDM wire cut machine)
Multi-cut precise WEDM ( EDM wire cut machine)
Special WEDM, such as Bid WEDM with Separated bed, Multi head WEDM
EDM Die Sinking machine ( ZNC,PNC and CNC)
EDM drilling machine ( ZNC and CNC)
Q3: How to place an order?
A: Please send us an inquiry or contact us with online service; after receiving your inquiry, we will reply to you with our
catalogue, quotation and other information you need.
Q4. How about the delivery time?
For Standard model, we can make delivery in 15 days after payment. For special model, we can make delivery in 25 days.
Q5. What service we can offer?
A:1). 12 months warranty;
2).Technical support online sevice;
3).Technical files serice;
4).On-site traning service;
5).Spare parts replacement and repair service;
6).All of the questions will be replied within 24 hours.
