Yhzs75 Mobile Mini Truck Mounted Concrete Batching Plant Machine Ready Mix Concrete Mixing Plant

Product Description

Mobile Concrete Batching Plant For Sale

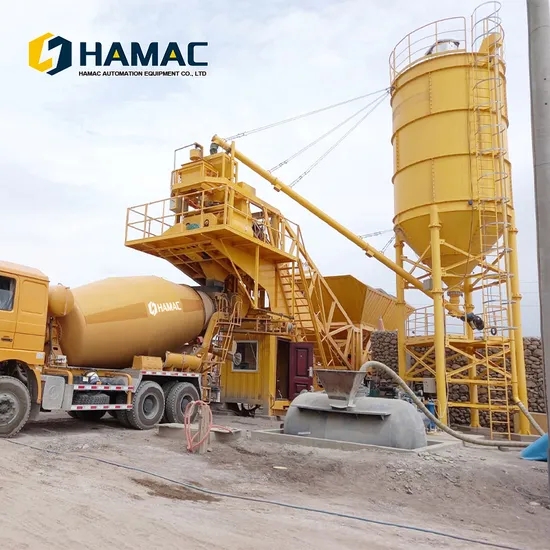

Mobile concrete batching plant for sale is a concrete mixing equipment that integrates the material storage, weighing, conveying, mixing, discharging and automatic control systems of the traditional stationary concrete batching plant into a single trailer unit; it is as same as the stationary automatic concrete batching plant.
HAMAC provide our clients with three different mobile concrete batch plant, or we can call them as portable concrete batching plant for different projects. We can provide you with different solutions.


FAQ FOR MOBILE CONCRETE BATCH PLANT FOR SALE
1. How does a mobile concrete plant work?
A wheel loader will feed the 4 different hoppers for different sizes aggregates, and then the aggregates and sand will be weighed by the load cells, and the cement comes from the cement silo by the screw conveyor, water is supplied by the water pump will be weighed as well by different load cells, then all of these material will be fed into the mixer for mixing.
After mixing, the concrete will be discharged into the concrete mixer truck. All of the weighing, mixing and discharging process are controlled by the software automatically.
2. Mobile concrete batching plant priceAs a manufacturer of ready mix mobile concrete batching plant, HAMAC provide our clients with different models RMC batching plant with different capacities -- 25m3/h, 35m3/h, 50m3/h, 60m3/h, 75m3/h, 90m3/h and 120m3/h.
The prices of these different models mobile concrete batch plant are different. There is only a range price for your reference, from 50,000USD to 100,000USD. Please contact our expert for exact price after communication on your exact requirement
3. Tips you should know to select the mobile concrete batching plantWhen you want to invest on a mobile concrete batching plant price, there are many factors you need to consider, here we give you some advice.
The budget: This is the most important factor to be considered;
The occupation of the mobile batching plant for sale: The width and length of the land to install the concrete batch plant. If the land is not so big, you have to consider a small mobile batching plant which will save the space;
For your own project or you want to sell the concrete to your clients? Normally speaking, if you want to sell the concrete, a large cement mixer is needed for the concrete batching plant. Because you have to meet the client's requirement for high demands; if for your own project, you can choose small concrete batch plant, it will save the cost and occupy smaller land;

Parameter	Model
	YHZS25	YHZS35	YHZS50/60	YHZS75/90	YHZS100
Theoretical Productivity (M3/H)	25	35	50/60	75	100
Central Mixer	0.5m3per batch	0.75m3per batch	1.0m3per batch	1.5m3per batch	2.0m3per batch
Aggregate Batching System	4 hoppers	4 hoppers	4 hoppers	4 hoppers	4 hoppers
Discharging Height(Mm)	3800	3800	3800	4000	4000
