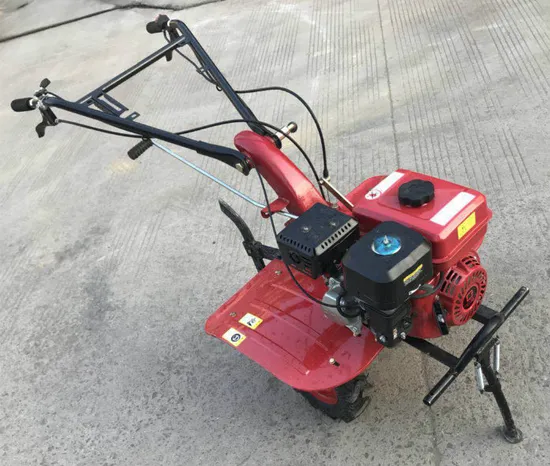

China Agricultural 6.5HP 7HP Gasoline / Diesel Power Tiller and Cultivator for Sales
| US$190.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
BSD 4.2Q
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Gasoline
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
ECE
Color
Green
Warranty
One Year
Transport Package
Wooden Case
Specification
89*45*65
Trademark
OEM
Origin
China
HS Code
8432809000
Production Capacity
50000 PCS/Year
Product Description
Advantage:1 Gear transimission
2 samll size,ligiht weight,conpact structure,easy to opertate
3 automatic clutch,variable speed,
4 three levels air filter,long life engine
5 match varity of equiment for tiller,finished more function in field
6 170F gasoline Engine made by ou selfsevles
Optional configuration:
A.Water pump
B.Sprayer
C.Ridger
D.Plough
E.ditching blade
F.4-4blades
G. Potato ditching blade
Parameter:
| Tilling | Tilling scope (mm) | 800-1000 |
| Tilling depth (mm) | 150-300 | |
| Transmission type | Gear | |
| Transmission oil (L) | 1.8L | |
| Transmission Material | Cast iron | |
| Gear Shifting | 0,1,2,-1 | |
| Engine | Engine model | 170F |
| Displacement (cc) | 212 | |
| Bore×Stroke(mm) | 70x56 | |
| Max power output(HP/rpm) | 7.0/3000 | |
| Max torque(N·m/rpm) | 11.5/3000 | |
| Fuel tank capacity (L) | 6 | |
| Oil capacity (L) | 0.6 | |
| Dimension(mm3) | 720×390×860 | |
| N/G·W(kg) | 77/87 | |
| 20Q | 86 | |
| 40HQ | 288 |
how to choose tiller and cultivator:
1.Currently on the market Tiller drive chassis has two kinds, one is axes and gear, the other is the belt driven. The former is more suitable for large specific resistance of soil, farming terraces compacted areas.
2.It suggest mountains, hilly areas supporting power users to buy air-cooled diesel engine rotary tillers, because of its small size, small, to facilitate the transfer; supporting transport, it is recommended to choose a differential Tiller
