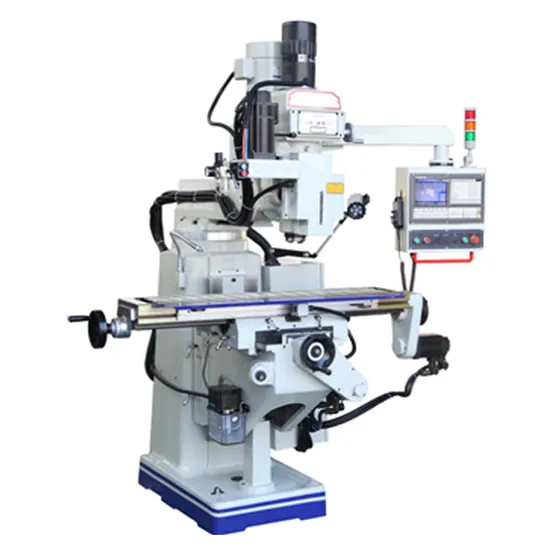

China Vertical Turret CNC Milling Machine 3 Axis 4 Axis Xk6325
| US$12,557.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
XK6325
Type
Knee-and-Column Milling Machine
Object
Gear
Structure
Ram
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Condition
New
Table Size
254X1370mm
X Travel
870mm
Y Travel
400mm
Table Load
280kg
T Slot
3X16
Spindle Taper
R8
Distance From Spindle to Table
0-400mm
Spindle Speed
66-4540rpm
Motor
5HP
Transport Package
Wood Case
Specification
ISO9001, CE
Trademark
UNI-TECH
Origin
China
HS Code
84595900
Production Capacity
100sets/Month
Product Description
China Vertical Turret CNC Milling Machine 3 axis 4 axis XK63251.System: SIEMENS/GSK/KND/FANUC
2.Meehannite cast iron
3.Taiwan milling head
4.CE,ISO9001
5.Ball leadscrew from Taiwan
| SPECIFICATION //CODE NO. | UNIT | XK6323A | XK6323B | XK6325 | XK6325A | XK6325B | XK6325C | XK6325D | XK6330 | XK6330A | ||
| 63006 | 63007 | |||||||||||
| Table size | mm | 230*1067 | 254*1270 | 305*1370 | ||||||||
| 230*1246 | 254*1370 | 305*1500 | ||||||||||
| T-slot | 3*16 | |||||||||||
| Table loaded | kg | 200 | 280 | 350 | ||||||||
| Long travel | mm | 550 | 750 | 800 | ||||||||
| 740 | 850 | 900 | ||||||||||
| Cross travel | mm | 300 | 400 | 380 | 380 | 400 | 400 | 360 | 360 | |||
| Z travel | mm | |||||||||||
| X/Y/Z rated power feed | mm/min | 5000 | ||||||||||
| X/Y/Z spindle motor power | kw | 1 | ||||||||||
| Vertical travel | mm | 380 | 400 | 410 | ||||||||
| Ram travel | mm | 315 | 465 | 500 | ||||||||
| Distance between spindle and table | mm | 0-380 | 0-400 | 0-410 | ||||||||
| Head | Spindle speed | standard | rpm | 50HZ:60-4500/60HZ:80-5440 | ||||||||
| optional | 65-4200 | 60-3750 | ||||||||||
| Spindle hole taper | standard /R8/optional/ISO40 | ISO40 | ||||||||||
| Motor power | HP | 3 | 5 | |||||||||
| Head | Head swivel | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | ||
| Head tilting | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | |||
| Control system | HD-500 , (KND/HD500/GSK) | |||||||||||
| Dimension of package | cm | 165*190*220 | 190*200*223 | 200*200*225 | ||||||||
| Weight | kg | 1200 | 1500 | 1700 | 1900 | |||||||
Standard accessories:
1.Draw bar
2.Tool box and tools
3. Woeking lamp
4.Elector lubricating pump
5.Hung up control panel
6.Cooling system
7.Oil collecting plate
8.Plastic splashing guard
Optional accessories:
1.Air draw bar
2.Machine vise
3.Universal clamping kits
4.Collets and chuck
