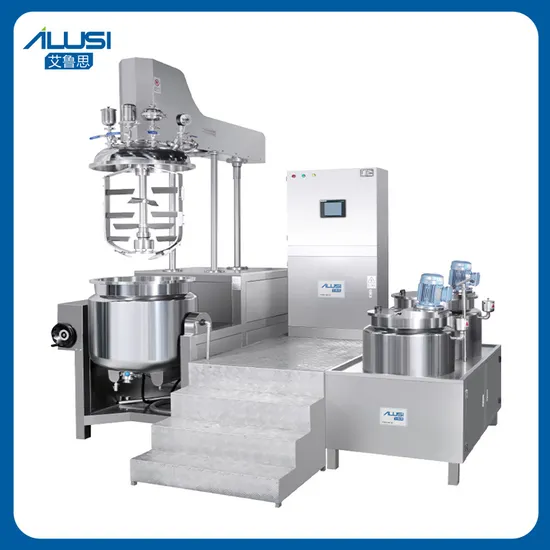

Facial Cream Vacuum Homogenizing Emulsifying Mixer Machine Lotion Sunscreen Cosmetic Production Processing Mixing Emulsifier

Product Description

The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes,etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
Main pot process:
1. Hydraulic lifting system: the pot cover can be lifted for easy cleaning;
2. Tipping discharging system: the pot body can be tipped for easy discharging;
3. Frame stirring: stirring without dead angles, high uniformity;
4. Homogenizing shearing: small gap grinding, high fineness;
5. Vacuum environment: the product has no bubbles and high gloss;
6.The design and use of internal and external circulation systems make the emulsifier extremely flexible and efficient in processing materials with different viscosities and characteristics.
7.The internal and external circulation system improves production efficiency and product quality by optimizing the material handling process, while providing greater operational flexibility and process control.

Model	Capacity	Stirring		Homogeneous		Oil and water pot			Vacuum pump
		KW	Speed	KW	Speed	Capacity	KW	Speed
AVE-10L	5-10L	0.37	0.84rpm	0.75	0-2880rpm	4L/9L	0.2/0.2	1440rpm	0.55
AVE-20L	10-20L	0.75	0.84rpm	1.5	0-2880rpm	8L/18L	0.37/0.37	1440rpm	0.55
AVE-30L	20-30L	1.5	0.84rpm	2.2	0-2880rpm	12L/27L	0.37/0.37	1440rpm	0.55
AVE-50L	20-50L	1.1	0.84rpm	3	0-2880rpm	20L/45L	0.37/0.37	1440rpm	0.75
AVE-100L	30-100L	1.5	0.84rpm	4	0-2880rpm	40L/90L	0.55/0.55	1440rpm	0.81
AVE-150L	50-150L	2.2	0.62rpm	5.5	0-2880rpm	60L/135L	0.75/0.75	1440rpm	1.5
AVE-200L	60-200L	3	0.62rpm	5.5	0-2880rpm	80L/180L	0.75/0.75	1440rpm	1.5
AVE-250L	60-250L	3	0.62rpm	5.5	0-2880rpm	100L/225L	0.75/1.5	1440rpm	1.5
AVE-300L	90-300L	3	0.62rpm	7.5	0-2880rpm	120L/270L	0.75/1.5	1440rpm	1.5
AVE-350L	100-350L	3	0.62rpm	7.5	0-2880rpm	140L/315L	0.75/1.5	1440rpm	2.2
AVE-500L	150-500L	4	0.62rpm	11	0-2880rpm	200L/450L	1.5/1.5	1440rpm	2.2

1. HYDRAULIC LIFTING SYSTEM
With hydraulic lifting method, smooth rise and fall, low sound, one key control. With hydraulic dumping method, large load, high stability.2. DOUBLE JACKET HEATING AND COOLING SYSTEM
The pot body adopts three layers of stainless steel imported plate welding composition, tanks and pipes for the mirror polishing, in line with GMP requirements; according to the process requirements, the tank can be heated and cooled materials, steam heating and electric heating.
3. MIXING SYSTEM One-way frame mixing with scraping edge and bottom, customized two-way screw belt mixing available, so that make the material fully and quickly fused and uniform, the contact material is made of SS316L, the scraper ismade of PTFE, frequency conversion speed control.
4. HOMOGENIZING SYSTEM In the narrow gap between the stator and rotor, it is subjected to hundreds of thousands of times of hydraulic shear centrifugal extrusion, impact, tearing and other comprehensive effects per minute, instantly and uniformly dispersed and emulsified, and after high-frequency cycling, it obtains fine and stable high-quality products without air bubbles.
5. ELECTRIC BOX CONTROL SYSTEM Optional button control system/Siemens touch screen PLC system; in order to ensure the stability of the whole set of machine control, the electrical appliances are imported configuration, which can reach the international standard.6. OUTLET
Bottom top valve outlet
Top of the valve is flush with the pot
Quick discharge
No residue7. WATER AND OIL TANKS MIXING SYSTEM
With stirring and dispersing function, the material can be dissolved and pre-treated first to improve production efficiency; triple sandwich structure, optional electric heating or steam heating, in line with CMP standards. AILUSI.PROFIL
Guangzhou Ailusi Machinery Equipment Co., Ltd. was established in 2014, the factory was founded in 2007, catering primarily to industries such as cosmetics, food. With advanced technology, production and inspection equipment and the specialized processes. We have garnered praise and trust both domestically and internationally. Moving forward, we aim to uphold tradition, foster innovation, and collaborate closely with our customers for a prosperous future together.1.Why choose us?
1.1-With industry-leading technical solutions and rich experience, we are able to provide tailor-made services;
1.2-Our team has professional knowledge and innovative ability, committed to providing customers with the best solutions, can help your company quickly improve production efficiency, optimize costs, so as to stand out in the fierce competition in the market;
1.3-Our products undergo strict quality control to ensure superior quality and have good after-sales service;
1.4-We focus on customer needs, communication and collaboration to ensure the successful implementation of the project.
1.5-If you are in the start-up stage and seeking capacity expansion, we can customize a whole efficient production line service program for you, and we are committed to the design and planning to the installation and commissioning, and then subsequent after-sales service support, will be the industry's top professional standards, to ensure that your production line can run smoothly!
2.What about after-sales service?
2.1- Before leaving the factory, the factory will strictly test whether the equipment operates normally or not, and before shipping, we will operate and debug the equipment again to ensure that the appearance of each machine has no external damage and functions normally, and provide operation videos and pictures to customers to confirm that there is no error, and then packaged for shipment.
2.2-For equipment that requires on-site installation and commissioning training, we can provide professional technicians to the customer's factory for installation and training teaching services, in the process of installation and commissioning, the technicians will provide on-site guidance to help customers familiarize with the operation and maintenance of the machine.
2.3-When customers encounter problems in the process of use, we provide a variety of convenient solutions [phone, e-mail, WeChat, video instruction and other ways]
3.How do you control the quality and delivery?
3.1-If you are worried about the quality, we can sign a quality assurance certificate, which can guarantee the interests of customers and ensure that our commitment is real and effective.
3.2-We will pack each machine in export wooden case before shipment, and provide pictures before and after packing to our customers to make sure the quality is worry-free before arranging shipment.
4. What about warranty and spare parts?
4.1-We offer a standard warranty of one year from the date of purchase. Within this one year, if the product has quality problems that are not caused by human damage, we will be responsible for repairing or replacing the corresponding parts free of charge.
4.2-We ensure that we provide our customers with sufficient spare parts support. During the warranty period, if the equipment needs to be replaced due to maintenance, we will provide the necessary spare parts to ensure that the product can be quickly returned to normal use. At the same time, we also provide a spare parts purchasing service for customers who exceed the warranty period, and we undertake to provide them at cost.
4.3 - We also offer a lifetime maintenance service for our machines! Even if the machine is out of warranty, you can contact us at any time to solve any problem.
5. Are your machines difficult to operate? How do you teach us how to use the machine?
Our machines are simple to operate and easy to learn; each machine comes with a detailed instruction manual and operating video, which contains a description of the machine's functions, operating procedures, safety precautions, machine maintenance, and troubleshooting guides.
6. Can you customize the machine?
As a machine manufacturer for 20 years with a professional engineering team and advanced production facilities, we have the skilled OEM know-how to design and build machines to your specific requirements that meet your standards.
7. What about delivery time?
In stock machines: 2-7 working days; Usually 7-40 working days (depending on the product).
