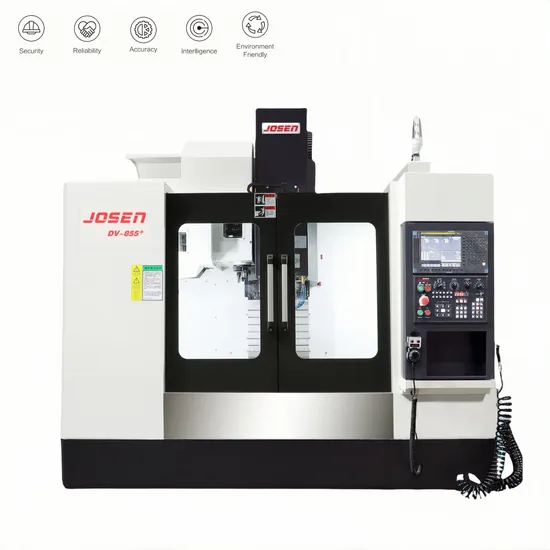

Small Universal Precision CNC Vertical Milling Machine for Moulds and Metal Parts
| US$20,000.00-40,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DV-855
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Working Table Size
1000*500mm
Spindle Speed
12000rpm
Spindle Taper Hole
Direct Driven
Cutting Feed Rate
10000mm/Min
Transport Package
Iron/Wooden Bracket, Wood Case
Trademark
Josen
Origin
China
HS Code
8457101000
Production Capacity
1000set/Year
Packaging & Delivery
Package Size
260.00cm * 290.00cm * 315.00cm
Package Gross Weight
5200.000kg
Product Description
Features:| 1.This model is suitable for communication, medical equipment, automobile and locomotive parts, 3C products processing. |
| 2.Three axis motor and screw adopt direct drive design, no belt or gear drive caused by noise, clearance and vibration problems, three axis rapid displacement up to 48m/min, greatly saving non-machining time. |
| 3.The three axes guide rail and screw adopt fully enclosed shield, which has very good protection performance. |
| 4.The three axes adopt C3 grade Φ40*P16mm screw, and adopt the assembly process of pre-stretching at both ends to strengthen the axial rigidity and reduce the thermal extension of the screw. |
| 5.The standard 24 disc type tool changer implements automatic tool change, saving the time of tool change process. |
| 6.Fully enclosed shield to protect the cleanliness of machine tools and working environment, improve operational safety, with transparent protection windows, more convenient to work. |
| 7.Fully enclosed electric cabinet, active airflow circulation design, professional cooling system of the cabinet makes the cabinet more dustproof and ventilated, and can control the temperature of the cabinet, prolong the service life of the device to reduce the failure rate, reduce downtime and maintenance costs. |
| 8. Large capacity, large flow processing cooling system, automatic plus manual control, can fully meet the requirements of strong cutting, reduce tool damage and improve product quality, reduce the cost of use. |
Basic Specifications:
| Main technical parameters | Unit | DV 855 | DV 1166 | DV 1266 |
| X-axis travel | mm | 800 | 1100(Total travel 1000) | 1200 |
| Y-axis travel | mm | 500 | 620 | 620 |
| Z-axis travel | mm | 550 | 600 | 600 |
| Distance from nose of spindle to table surface | mm | 120-670 | 125-725 | 125-725 |
| Working table size (X*Y) | mm | 1000*500 | 1200*600 | 1300*600 |
| Table T-slot size (width * number of slots * spacing) | mm | 18*5*80 | 18*5*100 | 18*5*100 |
| Max. loading capacity of working table | KG | 600 | 900 | 1000 |
| Spindle motor (continuous/30 minutes) | kw | 7.5/11 | 11/15 | 11/15 |
| Spindle speed | rpm | 10-10,000 | 10-10,000 | 10-10,000 |
| Spindle inner taper bore | BT40 | BT40 | BT40 | |
| X/Y/Z axis motors | kw | 1.8/1.8/3 | 3/3/3 | 3/3/3 |
| Rapid feed rate (X/Y/Z) | mm/min | 48000/48000/48000 | 36000/36000/36000 | 36000/36000/36000 |
| Fastest cutting feed rate | mm/min | 1-10,000 | 1-10,000 | 1-10,000 |
| Tool magazine capacity (standard/optional) | set | 24 | 24/30 | 24/30 |
| Tool magazine form | Tool disc type | Knife disc type | Knife disc type | |
| Tie rod bolts form | MAS-P40-1(45°) | MAS-P40-1(45°) | MAS-P40-1(45°) | |
| Maximum tool diameter of adjacent tools | Ø80 | Ø80 | Ø80 | |
| Max. tool diameter of empty adjacent tool | Ø150 | Ø150 | Ø150 | |
| Maximum tool length | mm | 300 | 300 | 300 |
| Maximum tool weight | kg | 7 | 8 | 8 |
| Positioning accuracy (full stroke) | mm | ±0.005 | ±0.005 | ±0.005 |
| Repeat positioning accuracy (full stroke) | mm | ±0.003 | ±0.003 | ±0.003 |
| Controller | FANUC 0I-MF | FANUC 0I-MF | FANUC 0I-MF | |
| Water tank capacity | liter | 220 (rear drainage) | 270 (rear) | 270 (Rear row) |
| Pneumatic pressure requirements | kg/cm2 | 6 | 6 | 6 |
| Power Specifications | AC380±10%,3 phase,60Hz/50Hz | AC380±10%,3 phase,60Hz/50Hz | AC380±10%,3 phase,60Hz/50Hz | |
| Electricity demand | KVA | 25 | 50 | 30 |
| Floor space (L*W) | mm | 2500*2800 (rear row) | 2780*3150 (rear row) | 3250*3150 (Rear row) |
| Machine height (maximum) | mm | 2800 | 2865 | 2865 |
| Machine weight | T | 5.1 | 6.5 | 6.6 |
