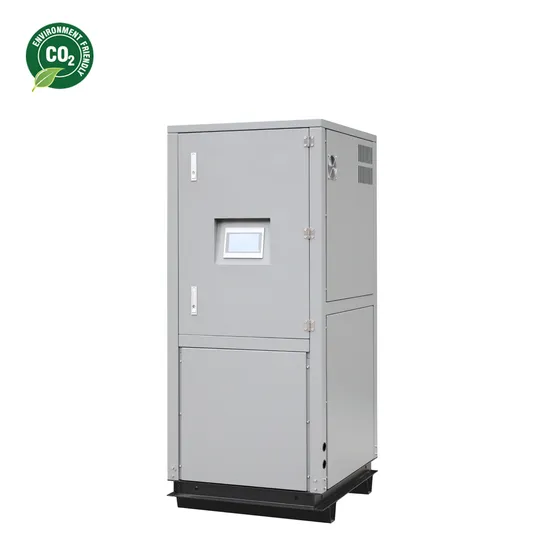

Water Source CO2 Heat Pump for District Heating

Product Description

Features of CO2(R744) Heat Pump:
The water can be heat up to 90C, high temperature output can reduce the volume of the storage tank and suitable for some specific usage (disinfection, cleaning) Suitable for low ambient. Even in -43ºC, it can efficiently offer heat Max COP is 5.5, our multi function model can reach max COP 7 (provide free cooling when producing heat) Inverter control to offer various power accordingly to real requirement, save energy Modules design, can reach higher Power by combined installation 6 layers of pressure protection Intelligent inverter control , can save 50% energy during defrosting Smart wireless control, also RS485/Modbus central control Programmable digital interface with touch keys Monobloc design, no need extra work for high pressure refrigerant connection The advantages of CO2 as a refrigerant
Climate-neutral environmentally friendly refrigerant R744 (CO2) Without environmentally hazardous decomposition products No additional contribution to the greenhouse effect (GWP = 1) Does not contribute to the ozone depletion (ODP = 0) No disposal and recycling requirements No availability constraints Low security requirements - Safety Group A1 Non-toxic, non-flammable, thermally stable, compatible with other material

INVERTER CO2(R744) water/water heat pump specification
Model		LYDS	40ZW	75ZW	120ZW	160ZW
Hot Water Side	Heating Capacity	kW	39.3	76.3	118	156
	Hot water capacity	L/H	750	1450	2256	2980
	Heating power input	kW	8.1	16.5	25	37.1
	COP	W/W	4.8	4.6	4.7	4.2
Cool Water Side	Cooling Capacity	kW	31	59.8	86.2	118.9
	Cool water capacity	L/H	6000	10000	14500	20400
	COP	W/W	3.82	3.63	3.45	3.2
Power supply	V/Ph/Hz		380V/50Hz/3PH
Heating type			Direct
Output water temperature		ºC	45~90
Input water temperature		ºC	5~50
Water source temperature		ºC	10~30
Compressor	Type		Dorin(Italy)
Circulation water pump	Brand		Wilo
	Power	kW	0.37	0.55	1.1	1.5
Hot water connection size		mm	DN20	DN20	DN25	DN40
Cool water connection size		mm	DN32	DN40	DN50	DN80
water heat exchanger	Type		Tube-tube exchanger			SU316
Refrigerant	Type		R744/CO2
Controller	Brand		Carel
Dimensions	Length	mm	1500	1740	2470	900
	Width	mm	900	995	1340	900
	Height	mm	1290	1540	1500	1910
Unit noise level		dB(A)	49	50	54	65
Net weight		kg	450	890	1050	900
Inverter			AC
Note:
1.Standard temperature condition:
Water temperature: inlet 15ºC,outlet 60ºC
Water source temperature:inlet 12ºC,outlet 7ºC
