4800*2350*1900mm Water Cooling Horizon 3015 Range Yaskawa Laser Cutting Machiine

Product Description

Product Description
3015 single table laser cutting machine has a small overall footprint and high cost performance. As an economical and practical laser cutting machine, it can be used by the majority of medium and thin plate customers who pursue quality and have limited budgets.
Features:
- A single cutting platform, the overall equipment is compact.
- The operation panel and the electric control are integrated into one design, independent of the cutting table, and the operation is more convenient.
- A variety of cutting formats are available to meet the blanking requirements of different sizes of plates.

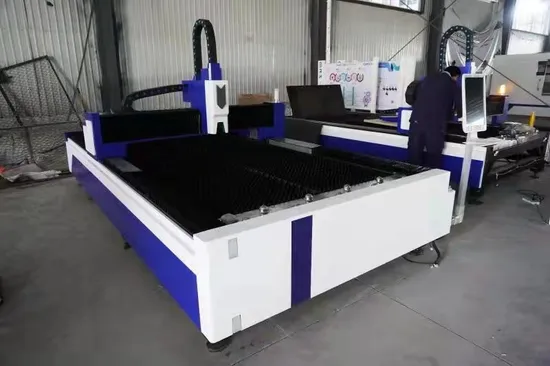

Detailed Photos

Product Parameters
Technical Parameters

Laser power	1000-2000W
Model	DPX-D3015	DPX-D4020	DPX-D6025
Cutting range	3000 × 1500mm	4000 × 2000mm	6000 × 2500mm
Cutting and focusing method	Manual / automatic focusing
Machine running accuracy	Acceleration: 1.0G
	Maximum speed: 80m/min
	Axial positioning accuracy of worktable: ± 0.05mm/m
	Repeated positioning accuracy of worktable: ± 0.03mm/m

Laser power	3000-6000W
Model	DPX-D3015	DPX-D4020	DPX-D6025	DPX-D8025
Cutting range	3000 × 1500mm	4000 × 2000mm	6000 × 2500mm	8000 × 2500mm
Cutting and focusing method	Auto focus
Machine running accuracy	Acceleration: 1.2G
	Maximum speed: 100m/min
	Axial positioning accuracy of worktable: ± 0.05mm/m
	Repeated positioning accuracy of worktable: ± 0.03mm/m

Laser power	12000-30000W
Model	DPX-D6025	DPX-D8025	DPX-D10025	DPX-D12025
Cutting range	6000 × 2500mm	8000 × 2500mm	10000 × 2500mm	12000 × 2500mm
Cutting focus method	Auto focus
Machine running accuracy	Acceleration: 1.8G
	Maximum speed: 150m/min
	Axial positioning accuracy of worktable: ± 0.05mm/m
	Repeated positioning accuracy of worktable: ± 0.03mm/m

Cutting Performance

Material	1000W cutting performance		1500W cutting performance		2000W cutting performance
Carbon steel	stable cutting	≤ 8mm	stable cutting	≤ 12mm	stable cutting	≤ 16mm
	Limit cut	12mm	Limit cut	16mm	Limit cut	20mm
Stainless steel	stable cutting	≤ 4mm	stable cutting	≤ 6mm	stable cutting	≤ 7mm
	Limit cut	6mm	Limit cut	8mm	Limit cut	10mm

Material	3000W cutting performance		4000W cutting performance		6000W cutting performance
Carbon steel	stable cutting	≤ 20mm	stable cutting	≤ 22mm	stable cutting	≤ 25mm
	Limit cut	25mm	Limit cut	25mm	Limit cut	30mm
Stainless steel	stable cutting	≤ 9mm	stable cutting	≤ 10mm	stable cutting	≤ 14mm
	Limit cut	12mm	Limit cut	14mm	Limit cut	20mm

material	12000W cutting performance		15000W cutting performance		20000W cutting performance
carbon steel	stable cutting	≤ 35mm	stable cutting	≤ 40mm	stable cutting	≤ 45mm
	Limit cut	50mm	Limit cut	60mm	Limit cut	70mm
Stainless steel	stable cutting	≤ 30mm	stable cutting	≤ 35mm	stable cutting	≤ 40mm
	Limit cut	50mm	Limit cut	70mm	Limit cut	80mm

Application

Certifications

Our Advantages
After Sales Service
1. 7*24 hour2. Response time<12 hours3.Online support4.Product replacement5. Customer field service6. Backup products during repairing for long time cooperators* International warranty ONLY valid if products are purchased directly from Horizon Laser or authorized local distributors/agents.
FAQ
1. What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
2. What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3. Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
