Circular Electromagnet for Scraps Lifting

Product Description

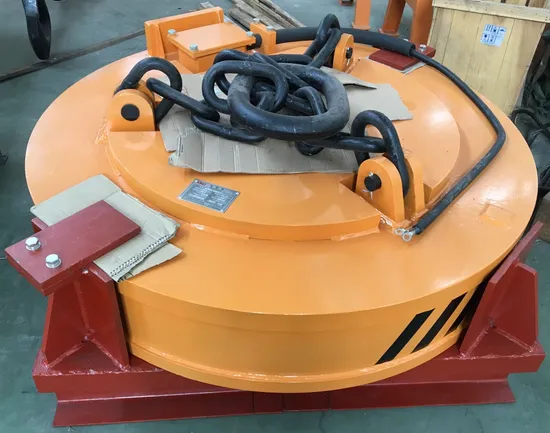

Circular electromagnet for scraps lifting
MW5 series normal temperature type lifting electromagnet
Profile
MW5 series products are round type magnets, with this structure, it features strong attracting force, deep penetration force, it is an ideal transportation tool. Suitable for lifting and transporting cast ingot, steel ball, pig iron, mechanical chip, various kinds of steel scraps, return scraps, cropping, baling scraps and etc. Suitable for removing large irons in advance in slag disposal process and lifting and transporting iron powder in the coal washery. Two chamber type outlet box with particular extra-thick outlet box fender and anti-twist setting for outlet cables. There are three excitation modes: rated voltage DC220V mode; strong excitation mode; over excitation mode.
MW5 series have normal temperature type, high frequency type, high temperature type, and strong magnet type. For strong magnet type, it can attract force 30% higher than normal type for frequently loading and discharging some light-weight scraps at big capacity melting furnaces. They are especially suitable for feeding during electric steel making process. The products have laready been applied widely in various national steel companies and got good feedback.
MW5-150L type main technical data as below:

Model	Cold-state power(kW)	Current A(cold/hot state)	overal dimension(mm)	Mass(kg)	lifting capacity(kg)(cold/hot state) for steel ball	lifting capacity(kg)(cold/hot state) for casting ingot	lifting capacity(kg)(cold/hot state) turnings
MW5-150L/1	15.6	70.9/46.1	1500	2830	11000	1900/1500	1100/900
MW5-150L/1-75	11.3	51.4/33.4	1500	3180	11000	1900/1500	1100/900
MW5-150L/2	11.3	51.4/33.4	1500	3200	11000	1900/1500	1100/900

MW5 strong magnet type main technical data(rated voltage DC-220V)

Model	Voltage	Cold-state power(kW)	Current A(cold/hot state)	lifting capacity for steel ball(kg)	lifting capacity for casting ingot(kg)	lifting capacity for turnings(kg)	overal dimension(mm)	Mass(kg)
MW5-165L/1-QC	400/200	17.6	80/52	13500	2650/2100	1500/1300	1650	4250
MW5-180L/1-QC	400/200	22.8	104/67.4	16000	3100/2400	1900/1600	1800	5600
MW5-210L/1-QC	400/200	32.6	148/96	23100	4000/3200	2600/2180	1980	8300
MW5-240L/1-QC	400/200	43	195/127	28600	5500/4400	3360/2650	2200	10800

Recently years, we have optimized these products on original base, products performance have been reinforced, and we have developed a strong magnetic type for steel scrap. This product can promote attracting force by 25-35%, but its weight only increased guarantee 10-15%. Thus improved working efficiency.
Complete lifting System:

Guide for Model Selection
1,What's the attached material? Choose the suitable series according to the attached material.
2,The specification of material attracted? such as weight,length,width or number.
3,The specification of hoist, such as: tonnage, height and brake type of hook.
4,The application environment, such as temperature of material attached, indoor or outdoor.
5,The cycle duty: when exceed 60%, choose high frequency type.
6, Selection of corollary equipment: cable reel and control cabinet.
Advantage:
MW18 series have good advantages in heat dispersion, penetration, and can lift and transport bar material, flat iron and angle iron in unpacked or simple packed situation. There are two kinds: normal & high temperature type. Normally multiple units are used in operation, so two or four connection points are used for linking hanging beam. We strongly hope that clients choose KMD magnet liftings as of good quality and service. We have been in this industry over 23 years with massive trusty from old clients.
