Padding Quilt Sheet Extrusion Line Synthetic Leather Base Cloth PU PVC Artificial Glass Fiber Felt Carpet Polyester Wadding Quilt Production Line

Product Description

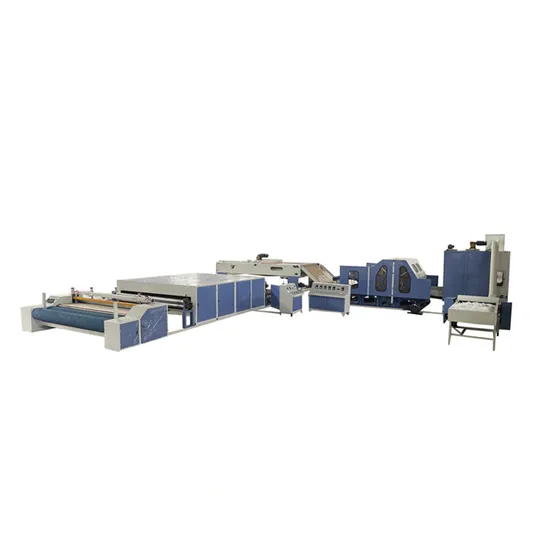

Non-Glue Polyester Wadding Roll Production Machine
1.Whole production line frequency conversion ,the running speed is adjustable,easy operation,According to customer demands,adopt different configurations,finished products can be used for quilt,mattress,cloth,sofa,cushion,car seat and etc.
2.Weighing different specifications fiber one by one and mixing them evenly ,feeding to opening machine ,real machine is blue and white color.
3.Open the compressed fiber raw materials into fluffy fibers and transport them to feeding box.
4.To collect the fluffy fibers which delivered by the opening machine and evenly transport those fibers to carding machine.
5.Opening and combing fiber into fibrous layer , after being combed by freedom rollers,the fiber in fibrous layer will be intertwined more closely.
6.By folding the fiber layer back and forth, continuous formation of a fiber layer with a certain width and thickness
7.When fiber layer passes through oven, the high temperature causes the low-melting chemical fiber melting in the entire fiber layer. After cooling, it binds all the fibers together like glue, but more environmentally friendly.
8.Trimming layer edges by press knife,Coiling the layer in to roll by the cloth roller,Set required roll length on PLC. When the length reaches the set value, the cross-cutting knife will work automatically to cut the fiber layer transversely.

Model	SN-WDL850	SN-WDL1230	SN-WDL1850	SN-WDL2000
Floor Size	15*10*2.5M	15*10*2.5M	16*10*2.5M	16*10*2.5M
Max Product Width	2800-3000-3200-3600-4000MM-6000MM OPTIONAL
Wadding Density	60-800GSM
Output	80-150KG/H	150-200KG/H	200-300KG/H	300-400KG/H
Power(Gas/Electric)	42/97KW	46/100KW	54/130KW	56/135KW
Finished Product	Polyester Wadding Roll & Non-glue Cotton Sheet

Opening Machine Feeding Box Carding Machine
Cross Lapper Electric Oven Cutting & Rolling Machine
Electric Weighing Bale Opener Electric Ironing Machine Wadding Roll Package Machine Detailed Photos
FAQ
Q1: Warranty,Quality and ServiceA:We provide one year warranty,within one year,If machine damaged,we provide parts free;And we provide online guidance within 12 hours,lifetime serviceQ2: Experience,Professional and EngineerA:We are a home textile manufacturer with almost 20 years experience,Our engineer online eight hours every day,we will give bestguide before buying and after buyingQ3: Trust and SafetyA:We are a family business group,all of us working in this market and can only working in this field,we must do our best becausethere is no way of escape,no matter when you have troubles,you can find us alwaysQ4: Advantage and Why choose usA:We have are rich experience, professional team, never absent after-sales servicewe helped many many customers in the world,we are growing up together with all of our customers
