Product Description

Product Description 1. Description and application:
(1) Laboratory plow mixer is suitable for a variety of mixing technologies. Ot is an ideal mixer for R&D department to achieve small testing productions.
(2) Mixing (powder + powder)
(3) Granulation/agglomeration (powder + liquid)
(4) Mixing/moistening/coating (powder + liquid)
(5) Drying (powder + liquid)
2. Working Principle :
A special shape of the blending paddle is installed inside the mixer machine. Slurry and creamed liquids are mixed and crushed and dispersed repeatedly under the action of the special blending paddle and crushing choppers, and then fully mixed uniformly with liquid, powder, granules, particles, pellets, and other accessories.
3. Features:
(1) Suitable for the blending process under the condition of big mixing resistance or big friction drag or easy to wear and abrase equipment.
(2) Materials having large blending resistance are for example: viscous fluid paste, paste materials, adhesive materials, slurry materials, creamed materials, etc.
(3) Featured with fast high efficiency, high degree of mixing uniformity, high output, high anti-resistance.
(4) Mixing time can be finished generally in 1-4 minutes.
(5) Easy to repair and easy to clean.

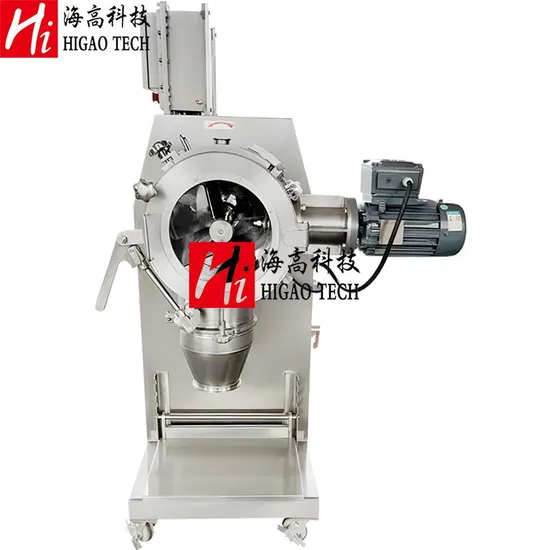

(PM Series) Lab Plow Mixer of HIGAO TECH
Model	Total capacity	Loading capacity	Mixing motor	Dispersing chopper	Control method	Dimension(L×W×H)	Weight
PM-5	5L	2~3L/batch	1.1kw/0~120rpm(inverter)	1.1kw/1440rpm	Push-button / PLC	600×600×800mm	30kg
PM-10	10L	4~6L/batch	1.1kw/0~120rpm(inverter)	1.1kw/1440rpm	Push-button / PLC	800×750×1000mm	50kg
PM-20	20L	8~12L/batch	2.2kw/0~120rpm(inverter)	1.1kw/1440rpm	Push-button / PLC	900×850×1200mm	90kg
PM-30	30L	12~18L/batch	3kw/0~120rpm(inverter)	1.5kw/1440rpm	Push-button / PLC	1000×950×1300mm	150kg
PM-50	50L	20~30L/batch	3kw/0~120rpm(inverter)	1.5kw/1440rpm	Push-button / PLC	1100×1050×1400mm	200kg

Related Products Click on this link to view more products.
Application
Company Profile What we provide:
Higao Tech Provide professional grinding pulverizer machines, powder mixing machines, vibrating screening machines, granulating machines, drying equipment, conveying equipment, puffed snack food production line, food snacks processing equipment, scrap rubber tire recycle equipment, waste tire recycling rubber powder production plant, rubber crumb recycling equipment, nutritional breakfast producing line, various customized turnkey systems, powder engineering turnkey system projects used in food, pharmaceutical, chemical, tire recycle, plastic, mineral, ceramic industries, etc.
Packaging & Shipping
FAQ 1. How can I know your quality?
Our company is famuous in our industry. We have more than 20 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
