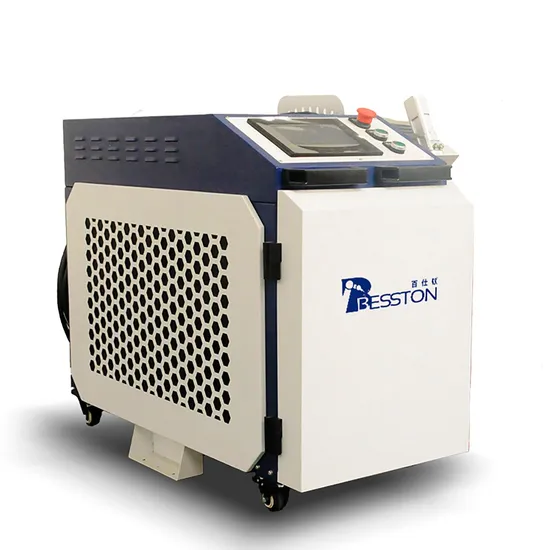

Portable Handheld Continuous Laser Cleaning Machine to 2000W Pulse Metal Rust Removal Cleaning Device

Product Description

Product Description
2000w continuous laser cleaning machine
Laser cleaning is an emerging green, environmentally friendly, high-quality and efficient cleaning method in industrial cleaning. Our LCC-2000W laser cleaning equipment adopts the continuous fiber laser, high-speed scanning system, high-precision control system, and high voltage stabilizing power supply of well-known domestic enterprises. The whole machine is stable, reliable, and has good performance, with characteristics such as ultra portability, high efficiency, and high cost-effectiveness.
Product usage, characteristics, and scope of application
Usage: The LCC-2000W laser cleaning equipment can be used for rust removal, paint removal, oil removal, and oxide film removal on all metal and some non-metal surfaces, as well as for cleaning black ash, carbon deposits, oil stains, and other contaminants on the surface of parts after welding.
Features: The LCC-2000W series laser cleaning machine weighs approximately 170kg and is equipped with universal wheels for easy mobility; Handheld operation is possible, and it can also be customized and integrated into motion mechanisms such as robots and CNC machines; Ensure cleaning effectiveness while having ultra-high cost-effectiveness, no consumables, and super energy saving; Green and environmentally friendly, pollution-free.
Scope of application: The LCC-2000W series laser cleaning machine can be used for the refurbishment of marine ship components, rail transit components, steel structure rust removal, steel structure refurbishment, etc.
Product Parameters

Equipment model	LCC-2000W
Cleaning hair model	Lightweight cleaning hair
Average laser power	2000W
Power regulation range	10% ~ 100%
Center wavelength	1080 nm
Laser linewidth	Adjustable from 5mm to 150mm
modulation frequency	Adjustable from 0Hz to 20000Hz 0Hz represents continuous mode
Bundle parameter product BPP	<1.5 mm·mrad
Fiber Length	Standard 10m
Minimum bending radius of optical fiber	>200mm
Short term power stability	<2%
Cooling method	Internal circulation water cooling (deionized water)
Polarization direction	arbitrarily
Guide laser function	have
Anti high reflectivity function	have
Field lens model	F300/F400/F500 Select the optimal model based on actual working conditions

Chassis size	1100mm in length, 550mm in width, and 1100mm in height (Subject to actual delivery)
net weight	170kg
Cleaning head weight	1.3kg
Supply Voltage	Single phase three wire system AC220 ± 10% V
mains frequency	50 Hz
Working temperature range	0ºC ~ 40ºC
Storage temperature range	-10ºC ~ 60ºC
Power consumption @ 25 ºC	<10kW
The above parameters are for reference only, please refer to the actual situation
