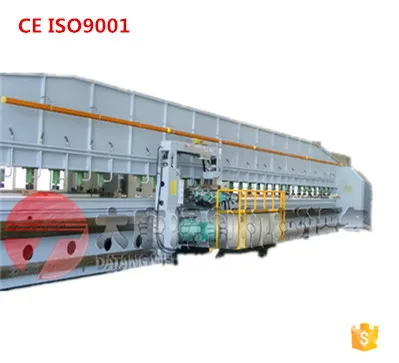

Datang CE Approved for 13 Years Edge Milling Machine
| US$1,000.00-10,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DXBJ
Type
Meter Milling Machine
Object
Hardware
Structure
Desktop
Milling Cutter Type
Standard
Milling Cutter Structure
Standard
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE
Condition
New
Color
as Per Customers′ Requirements
Optional
Foot Switch, Chuck
Delivery Time
Timely
Certificate
CE, ISO
Transport Package
Wooden /Container
Specification
Standard
Trademark
Datang
Origin
China
HS Code
84688000
Production Capacity
50 Sets Per Month
Product Description
Product DescriptionCompare with the traditional edge milling machine, this series Edge Milling Machine has the assembable and dissambable track with heat-treatment, the lathe has the reasonalbe structure, the milling head running is steady and reliable, the feeding system and backing system is identified full, free speed is fast and effeciency is high, the milling head angle adjusting is easy, the tailor made milling facer and standard milling facer is changeable, which is the new generation product of the traditional milling machine.
The face milling machine consists of milling and cutting head, elevator column, work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.
This face milling machine is used to mill the end face of Box-beam and H-beam, and the degree of milling head can be adjusted manually in vertical direction to bevel the end face. The hydraulic support rack for choice can fix the beam and is open top, which is easy for hoisting.
| Model | DXBJ-6 | DXBJ-9 | DXBJ-12 |
| Milling angle | 0-45° | ||
| Milling plate thickness | 6-50 | ||
| Milling depth for one time | 12 | ||
| Transverse milling speed | 0.3/0.5 | ||
| Milling free speed | 5 | ||
| Main shaft rotation speed | 125-800 | ||
| Hydraulic system pressure | ≤3.5 | ≤3.5 | ≤3.5 |
| Support platform cyclinder capacity(Piece) | 8 | 11 | 15 |
| Support platform to the ground distance | 900 | ||
| Feeding motor power | 1.1/0.85 | ||
| Milling motor power | 3 | ||
| Oil pump motor power | 5.5 | 5.5 | 5.5 |
| Dimension(a×b×c) | 7724×2600×2050 | 10724×2600×2200 | 13724×2600×2300 |
Detailed Photos
