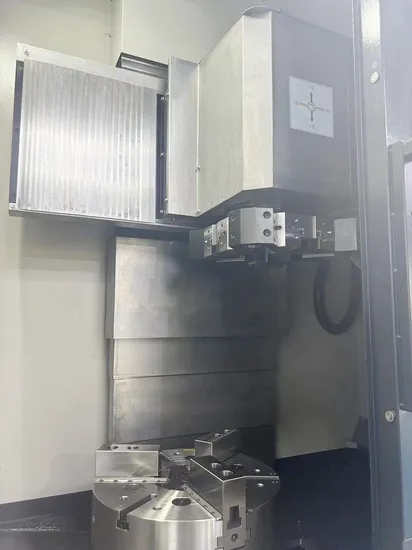

CNC Machine Tool Vertical Lathe Wheel Hub Processing Preferred Equipment Vtl130atc

Product Description

Product Description
High-efficiency CNC vertical lathe, suitable for processing small and medium-sized discs and cover parts High-strength cast iron base and column, with good stability and shock resistance Vertical structure, convenient clamping of workpieces, small footprint and oil-water separation structure The cooling water is clean and environmentally friendly. The separated cooling water tank is easy to clean. The precise, high-rigidity cartridge-type spindle structure is easy to maintain. The spindle sleeve is fully symmetrical and suspended, which can better eliminate the impact of thermal deformation on machining accuracy. High-power AC spindle motor , which enhances the stability of the machine tool operation. The main shaft is lubricated with imported high-grade grease, fully enclosed, maintenance-free. Tool holder, high rigidity, fast tool change, reliable centralized machine tool operation panel, making operation more convenient and fast X/Z axis adopts high-precision ball screw and special bearing for screw, good precision retention Integral fully enclosed protection, environmental protection clean.
Product Parameters

Item	Specifications	MODELS→ Unit	VTL130ATC	VTL160
Mechanical capability	Disc diameter	mm	Φ1300	Φ1600
	Maximum cutting diameter	mm	Φ1600	Φ2000
	Maximum processing weight	kg	5000	8000
Travel	X-axis travel (left and right)	mm	-100+980	-100+980
	Z-axis travel (up and down)	mm	800	800
Spindle	Power	kw	37/45	37/45
	Speed (low speed range)	rpm	2 - 84	2 - 84
	Speed (high gear)	rpm	85 300	85 300
	Maximum torque	Nm	20000	20000
	Spindle bearing diameter	mm	Φ457	Φ457
Tool Magazine	Tools number	pcs	12	4
	Tools handle type	-	7/24 taper BT50	32,Φ60
Machine Dimension	Machine weight	kg	26000	30000

Detailed Photos

Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
