High-Efficiency Intelligent Cardboard Laminator with Speed Optimization

Product Description

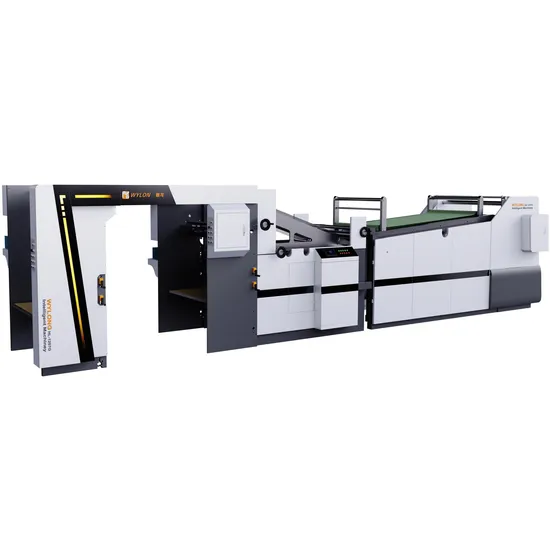

HLK series of Automatic Cardboard Laminating Machine
Application Our company specializing in the production of HLK series high precision automatic mouunting machine,used for tissue paper,paper jam,gray paper ,coated paper ,such as joint processing,meet the double-sided printing and laminatingmthin and thick paper laminating special processing requirements,such as high precision of framed ,joint before and after deformation,suitable for wine box,shoebox,tag, elevator,toys,gift boxes,and exquisite packaging products processing,framed the paper smoothness,high accuracy,high hardness,good characteristics.Product Paramenters

Model	HLK-1207
Max. Sheet size	1195x700mm
Min. sheet size	450x400mm
Power	220/380V 12KW
Thickness of Upper Paper	120-1000g/m
Thickness of Bottom Paper	200-1500g/m
Laminate Error	±0.5mm
Operation space	3mx12m
Max. speed	100-150pcx/min
Weight	7000kgs
Dimension	9x1.9x2.2m

Designed in the accordance with European CE stacdard, human-machine interface detects the faults automatically and alarms any abnormal. Product SizeFeatures1. Original paper synchronous dynamic calibration system.
2. Adopt double gap design E type, can put into use laminating paper with a pallet truck.
3. Before send paper type suction a top system, size conversion from adjustment, easy to operate.
4. Fluff paper receiver system, can will overlap the finished product, to push again after fluff and tidy. ensure clean paper.
5. Electric adjustment, speed and pressure of paper length conversion is convenient.
6. PLC computer control system, can automatically detect the status of the operation, abnormal situation,maintenance and work record.
7. High precision coating system, automatic liquid level control, can according to adjust the volume.
Products Description1.Paper feed system
Using the front ceiling feeding system,the size conversion is free of adjustmentand the operation is simple 2.Gas supply system
It is equipped with two German Beck airpumps to provide a stable air source forthe upper and lower Feida. 3.Laminating system
Using the speed difference between thepaper and the motion gauge, the paper isfollowed by the resistance gauge, and thepositioning is accurate. 4.Electrical system
PLC computer control system,canautomatically detect working conditions,abnormal conditions,maintenance statusand work records
5.Coating system
High precision coating system,automaticliquid level control, can accurately adjustthe coating amount according to thepaper demand, to ensure uniform gluing.Standard ConfigurationWhy Choose UsListen to customer needsThe best user experience is our ultimate goal
Our Certificates
We only serve customers who havestrict requirements for quality
Our Workshop
Our Exhibitions
lt is an enterprise specializing in the production of a full set of production lines of industrial machinery
Packing&Shipping
FAQ
1.Who Are We?
We are based in Zhejiang, China, start from 2004,sell to South America(30.00%),Africa(30.00%),Southeast Asia(20.00%),South Asia(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 11-50 people in our office.
2.How Can We Guarantee Quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.What Can You Buy From Us?
Automatic Cardboard Laminating Machine,Automatic Flute Laminating Machine,Automatic Paper box patching Gluing Machine, Automatic folder Gluer,Automatic Die Cutting Machine
4.Why Should You Buy From Us Not From Other Suppliers?
Wylong Machinery Co., Ltd. is a professional corporation specialize in manufacture full complete production line of Automatic Cardboard Laminating Machine,Automatic Flute Laminating Machine and other industrial machinery with more than 20 years experience.5.What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW; Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English
