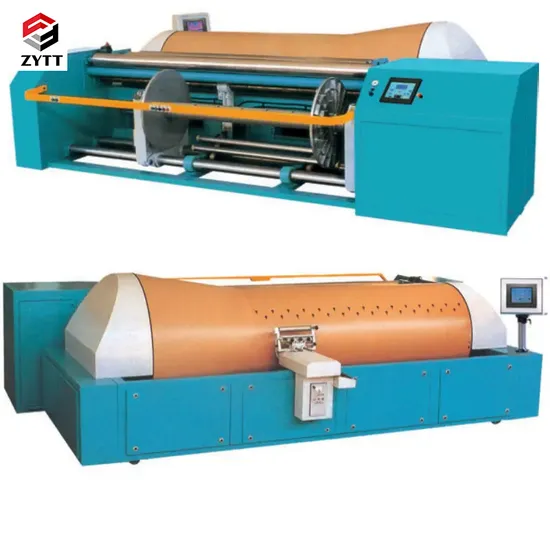

Sectional Warping Machine Auto Used 720ends Sectional Warper Machine

Product Description

WUXI ZHONGYIN TEXTILE TECHNOLOGY.,LTD
Our company was founded in 2012, but we have 20+ years of machinery production capacity and export experience ZYTT on textile machinery business. We have presence in Asia,United States, Europe,Africa.
Our advantage lies in high quality pre-sale & after-sales service, first hand high quality factory price, strong team strength. One-to-one information handover solves all your problems.
Product Description
Scope of Application This machine is suitable for sectional warping of all types of yarns,including worsted fabric, synthetic filament fabric, yarn-dyed fabric,real silk fabric, and special textiles etc. It can be used as the pre-weaving preparation equipment for shuttleless loom of rapier,projectile, water-jet and air-jet etc., it is the preferential equipment of weaving mill for developing various top-grade fabrics or special-type fabrics. It can meet the sectional warping of various top-grade fabrics, precision fabrics and heavy tension fabrics.
Technical Features 1. Warping and beaming is driven by A.C.frequency converter so that constant yarn speed and tension is gained even at high speed.

2. The special machinery-electricity-gas integrated oil pressure equipment can create oil pressure and drive the clamping braker to realize the controlling of warp brake, The proportioning valve control the damping mode of the outer steel node and realize the automatic control of the beam tension.
3. Warp servo transmission uses the ball bearing lead screw structure and has the characteristic of rapid response, high precision. Bar position setting and initial, potential adjustment will complete automatically once button pressing.
4. The forward and backward movement of warping table is controlled by AC digital servo controller and transmission of ball screw rod. The system is also equipped with press roller and several kinds of sensors.
5. The application of press roller guarantees the more flatness of the thread.The warping table will be back for the same distance in the warping procedure.
6. Serve motor will measure the thickness of warp thread for several times through the transmission of the ball bearing lead screw and realize the automatic measurement of the warping displacement (patent technology).
7. The steel drum is subject to high precisiondynamic balance calibration.
8. Use the communication technology, machinery-electricity-liquid-gas integrateddesign.Configuremultiple PLCs, digital A.C. servo frequency inverters, two touch screens,and onelong-distance monitor. The system is advanced, reliable andhighly automated.
9. The warping frame is moved on the rail, but the lease reed and creel are fixedso that the position of warp stripe is unchanged and the side yarn tension is also constant.
10. The movable beaming part can match one or more warping machine. The electrical source and air supply are connected by the inserter, simple and reliable.In case of a unit, it could be securely installed.
11. Various types of bobbin creel are available, and the spindle pitchand spindle number could be selected according to the customer's request.
12. Several types of tension devices and warp stop motions are available.
13. Static eliminator is provided in the warping table and oiling equipment is provided in the beaming part.
Main specifications 1. Work width:2300 ~ 4800(mm)
2. Beam flange diameter:800,1000,1250mm
3. Warping speed:0 ~ 800(m/min)
4. Beaming speed:0 ~ 200(m/min)
5. Deviation of Beaming tension:≤ ±2%
6. Braking distance:≤ 3(m)(500m/min)
7. Beaming tension:≤ 8000N
8. Drum diameter:1026(mm)
9. Cone Lenth:1010,1360mm
10. Cone angle:1:6.3=9°,1:8=7.125°
11. Stripe traverse speed:0.001 ~ 9.999(mm/r) (stepless)
12. Deviation of stripe positioning:≤ 0.1(mm)
13. Deviation of stripe traverse:0.02%
14. Stripe width:0.1 ~ 400.0mm
15. Panel of microcomputer for warping control:10.4'' Touching sonser color screen
16. Panel of microcomputer for beaming control:10.1'' Touching sonser black screen
17. Spindle pitch:250x250(mm) (wool yarn,cotton yarn,blended yarn) 290x290(synthetic filament)
18. Input voltage:3x380V(±10%)
19. Capacity:40KVA 50KVA
20. Warping motor power:11KW,15KW
21. Beaming motor power:15KW,22KW
22. Warping and beaming frame weight:5500(kg)
23. Creel weight:2500(kg)


Detailed Photos

FAQ
Q Products price and discount:A Wesupport customization.Pls feel free to tell us machiner details you wanted. You will get our reply in 24 hours Q Delivery timeA Normally 30 days after deposit.lf the machine you need is in stock,we can ship it shortly. Q Machine warrantyA One year.For any spare part,the customer can purchase from us for life. Q Logistics costAThe freight depends on weight,packing size,and your country or region,etc Q After sales serviceA Online service and we offer factory trained servicemen for machine start upoperator/maintenance training and repair service. Q Choose mechanical equipmentA Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification Q More questionA Please feel free to contact
