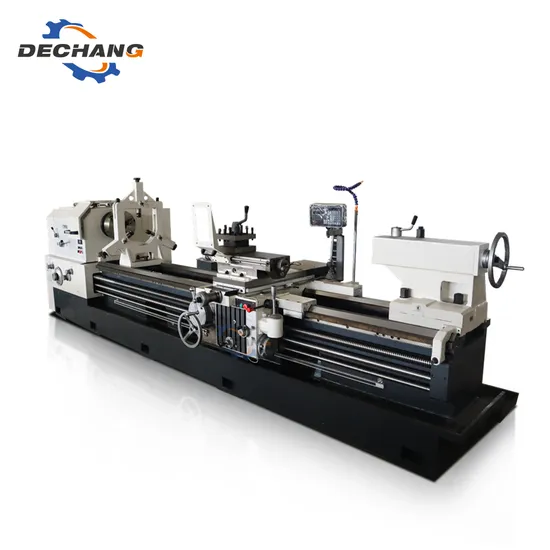

1100mm Bed Width Horizontal Heavy Duty Lathe Machine Cw61200L

Product Description

1100mm Bed Width Horizontal Heavy Duty Lathe Machine Cw61200L
Product Description
FEATURES
One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Headstock gears hardened and ground to achieve precision and low noise Product main technical specification:

Specification	Units	CW61200L
Swing over bed	mm	2000
Swing over cross slide	mm	1650
Distance between centers	mm	3000-10000
Guideway width	mm	1100
Max. load capacity	T	10
Spindle bore	mm	100
Spindle nose type	-	1:30 Extended spindle head
Spindle nose taper		Metric 140
Spindle speed steps	-	FWD. 21 steps
Spindle speed range	rpm	3.15-315
Chuck	mm	φ1600 4-jaw manual
Turret/tool post	-	Manual turret 4 position
Tool shank size	mm	45 x 45
X axis travel	mm	850
Z axis travel	mm	1350-9750
X axis feed grade/range	mm/r	56/0.05-6
Z axis feed grade/range	mm/r	56/0.1-12
X axis rapid traverse	mm/min	1870
Z axis rapid traverse	mm/min	3740
Metric thread grade/range	mm	44/1-120
Inch thread grade/range	T.P.I	31/28-3/8
Module thread grade/range	mm	-
DP thread grade/range	D.P.	-
Tailstock quill diameter	mm	Φ260
Tailstock quill taper	-	Metric 80
Tailstock quill travel	mm	300
Main spindle motor	kW	37
Rapid traverse motor	kW	1.5
Coolant pump motor	kW	0.125
Width x Height	mm	2250x2050
Length	mm	6400-13400
