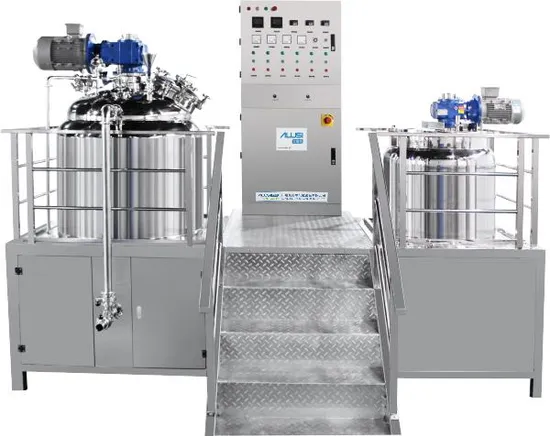

Cosmetic Mixing Tank Equipment Vacuum Homogenizing Emulsifying Mixer Machine

Product Description

AILUSI MACHINERYManufacturer of Cosmetic | Pharmaceutical | Food | Daily Chemical industrial | GMP Standard Hydraulic lifting vacuum emulsifier mixerThe machine is suitable for the production of various kinds of paste, cream products in cosmetic factories and pharmaceutical factories. Specially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpaste, etc. having extremely small particles for chemical, cosmetics, pharmaceutical, and food industries.v
P
Standard configuration- Emulsifier, water phase tanks, oil phase tank - Vacuum pumps and sync solenoid valves - Emulsifier and material filter - Hydraulic lifting system and mixing system- Stainless steel platform- Inverter and electrical control box
Working PrincipleThe materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by the vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With a very high-speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles that appear during the process will be sucked out promptly in the vacuum status in the tank.
Technical Parameters:

capacity (L)	Agitator power (kW)	Speed (rpm)	Homogenizer power (kW)	Speed (rpm)	Oil/Water tank (L)	Agitator power (kW)	Speed (rpm)	Hydraulic (KW)
50	1.5	0~75	2	0~3600	20/45	0.37/0.37	0~1440	0.75kw
100	2.2	0~75	3	0~3600	40/90	0.55/0.55	0~1440	0.75kw
200	3	0~75	5.5	0~3600	80/180	0.75/0.75	0~1440	1.1kw
300	4	0~75	5.5	0~3600	120/270	1.1/1.1	0~1440	1.5kw
500	4	0~75	7.5	0~3600	200/450	1.5/1.5	0~1440	1.5kw
1000	5.5	0~75	11	0~3600	400/900	2.2/2.2	0~1440	2.2kw
2000	7.5	0~75	15	0~3600	800/1800	2.2/2.2	0~1440	-
3000	11	0~75	18.5	0~3600	1200/2700	3/3	0~1440	-

Main features:
1) Consist of the main emulsifying mixer, water pot, oil pot, vacuum pump, etc
2) Ointment making machine adopts advanced world famous brand components in pneumatic parts, electric parts, and operation parts.
3) High-quality SUS304&316L material, internal and external mirror polish of homogenizer mixer.
4) High effection homogenizer, 2μm smooth finish
5) Vacuum emulsifying mixer machine applies to cosmetics, pharmaceutical, food, etc industries
Details pictures:
About us:
FAQ:
Q: How can I get the price?
A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: What is your lead time?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 10-20 days for small quantity,and about 30 days for large quantity.
Q: What is your payment term?
A: T/T,Western Union,L/C,and Paypal.This is negotiable.
Q: What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS, UPS, DHL, TNT, FEDEX and ect).
